- Speed Reducer Data Sheet -
HOME

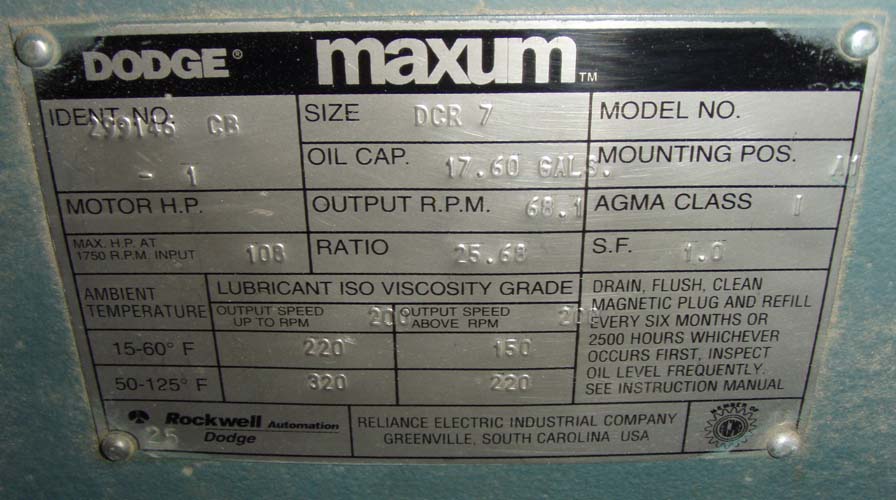

N A M E P L A T E       D A T A
Manufacturer:      Dodge Maxum Baldor Rockwell Automation Our ID No.      007194
Model:      DCR7 Ratio:      25.68
MO# or S/N      299146 CB Alt. S/N
IP Speed      1750 HP rating      108 Cat. Rating
OP Speed:      68.1 SF / SC      1.0
Date       Oil Capacity      17.60
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      95,600 Lb-Inches Shaft Diameters High Speed:  2.625
Low Speed:  4.000
Weight      1,200 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25.68:1

68.1 RPM
108.0 HP
1430 RPM
56.6 RPM
92.0 HP
1170 RPM
45.6 RPM
76.8 HP
870 RPM
33.9 RPM
59.1 HP
720 RPM
28.1 RPM
49.7 HP
580 RPM
22.6 RPM
40.8 HP
Notes:
Condition:
Unused
