Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      007200
Model:      2140Y1-LR Ratio:      5.150
MO# or S/N      95-0685050-01 Alt. S/N
IP Speed      1200 HP rating      876 Cat. Rating
OP Speed:      233 SF / SC      1.64
Date      08/95 Oil Capacity      52.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      403,000 Lb-Inches Shaft Diameters High Speed:  5.000
Low Speed:  7.000
Weight      7,500 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
5.150

350 RPM
2172 HP
855 HP
1430 RPM
280 RPM
1850 HP
1056 HP
1170 RPM
230 RPM
1574 HP
1185 HP
870 RPM
175 RPM
1235 HP
Exceeds catalog HP rating
720 RPM
140 RPM
1055 HP
580 RPM
115 RPM
879 HP
Notes:
Condition:
USED

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

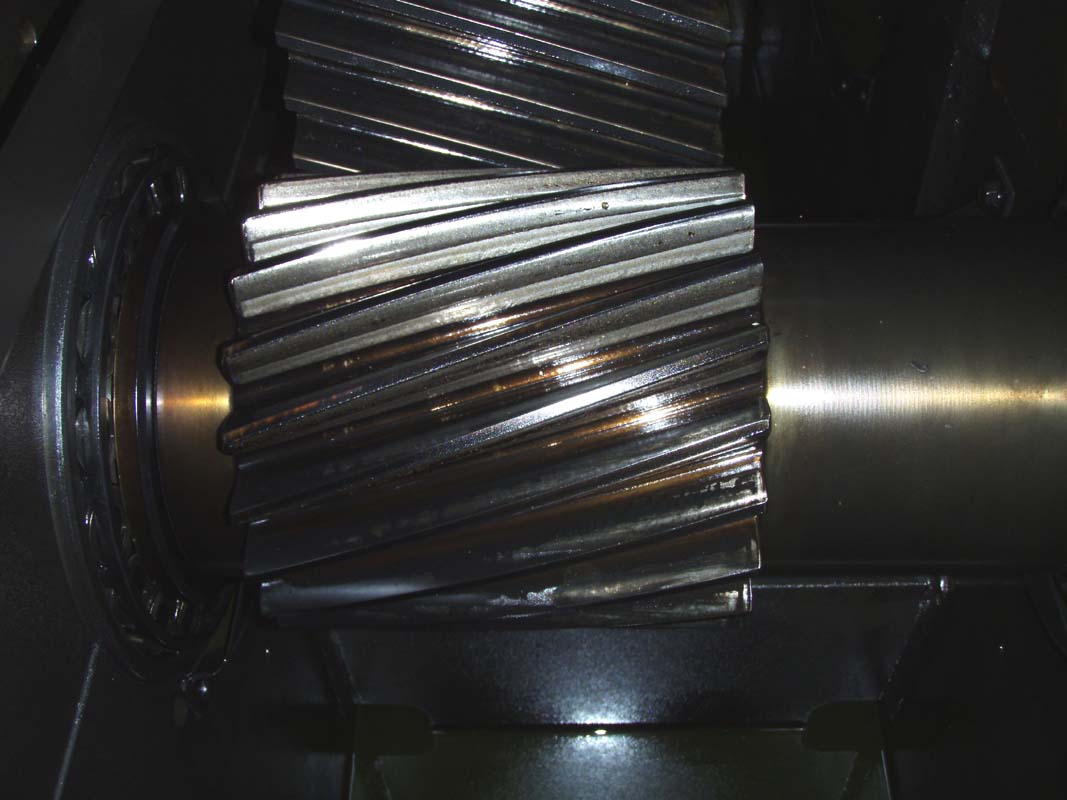

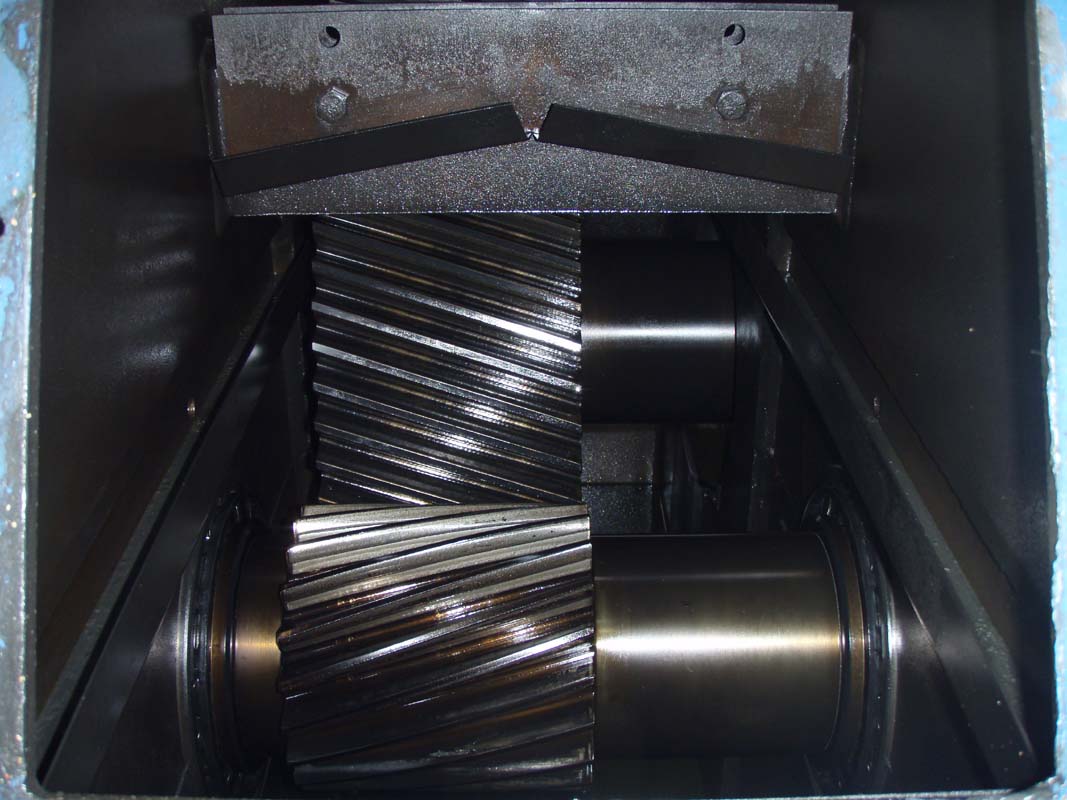

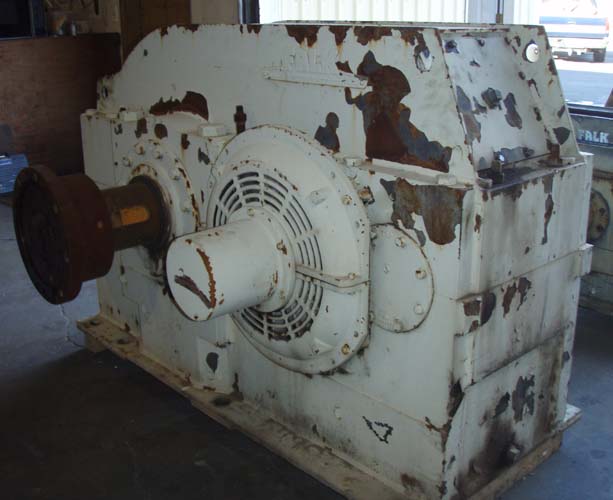

Click on images for larger view.
