- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       OHIO GEAR Our ID No.       007252
Model:       RA4HD Ratio:       1:1
MO# or S/N       436522 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       1,471 Lb-Inches Shaft Diameters High Speed:   1.875
Low Speed:   1.875
Weight       170 Lbs Approx. Assembly       C - M1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
1:1

1750 RPM
43.0 HP
1170 RPM
1170 RPM
31.70 HP
870 RPM
870 RPM
25.30 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

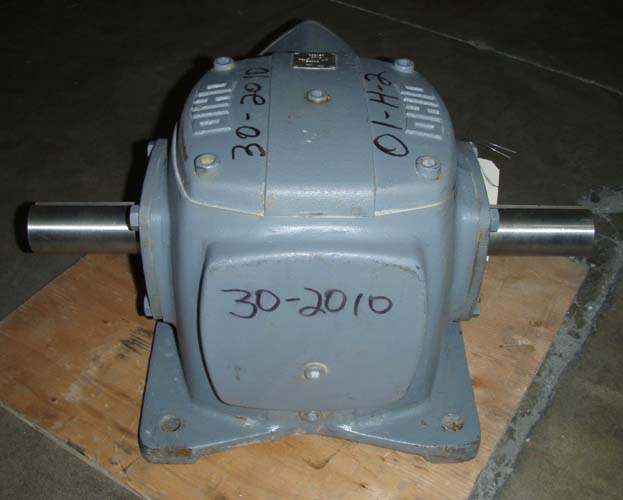

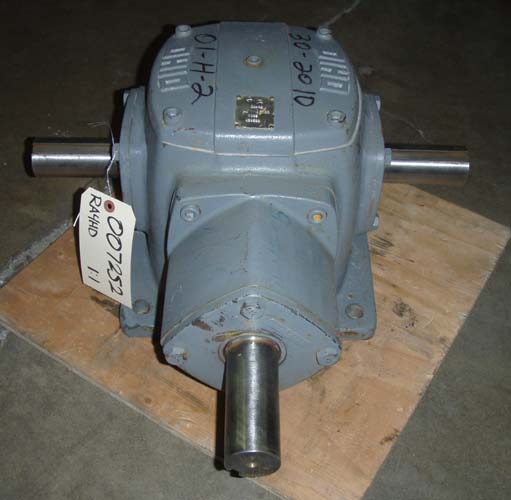

Click on images for larger view.
