N A M E P L A T E       D A T A
Manufacturer:       DAVID BROWN Our ID No.       007261
Model:       M042250.BANR3 Ratio:       50:1
MO# or S/N       688505 Alt. S/N
IP Speed       HP rating       1.5 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       2,990 Lb-Inches Shaft Diameters High Speed:   .875
Low Speed:   1.250
Weight       48 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
50:1

36 RPM
1.79 HP
1430 RPM
24 RPM
1.19 HP
1170 RPM
18 RPM
0.896 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

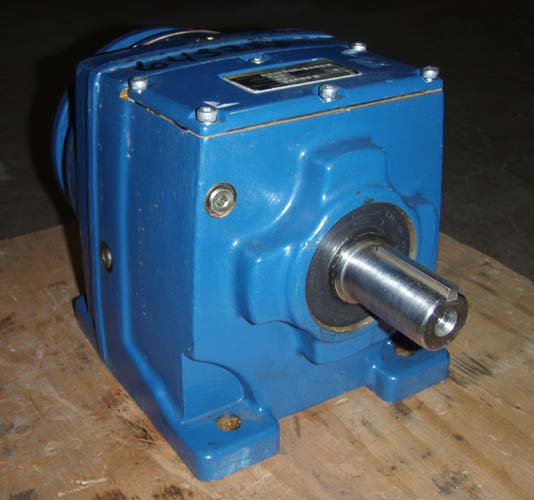

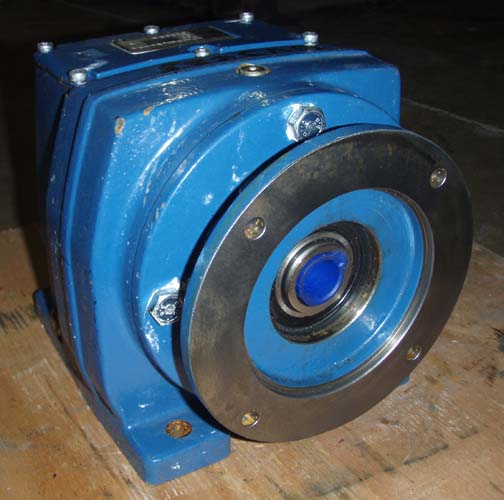

Click on images for larger view.
