Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       DODGE Our ID No.       007265
Model:       210DM4A19.3A1 Ratio:       9.3
MO# or S/N       M58175ZBE Alt. S/N       079163-68-GS
IP Speed       1750 HP rating       14.00 Cat. Rating
OP Speed:       188 SF / SC       1.00
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       4,500 Lb-Inches Shaft Diameters High Speed:   1.375
Low Speed:   1.625
Weight       86 Lbs Approx. Assembly       A1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
9.3:1

188 RPM
14.0 HP
1430 RPM
154 RPM
11.8 HP
1170 RPM
126 RPM
10.1 HP
870 RPM
93.5 RPM
7.68 HP
720 RPM
77.4 RPM
6.44 HP
580 RPM
62.4 RPM
5.26 HP
Notes:
Condition:    NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

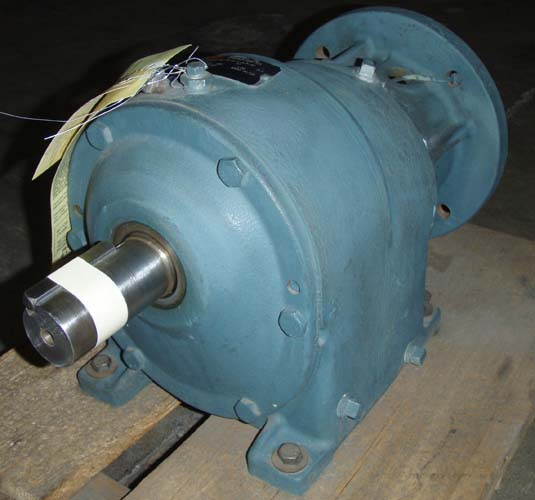

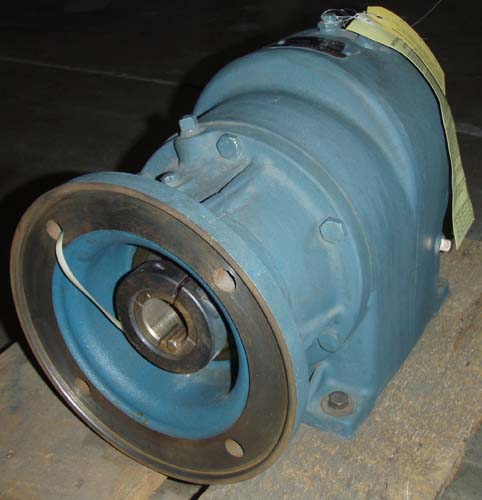

Click on images for larger view.
