- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

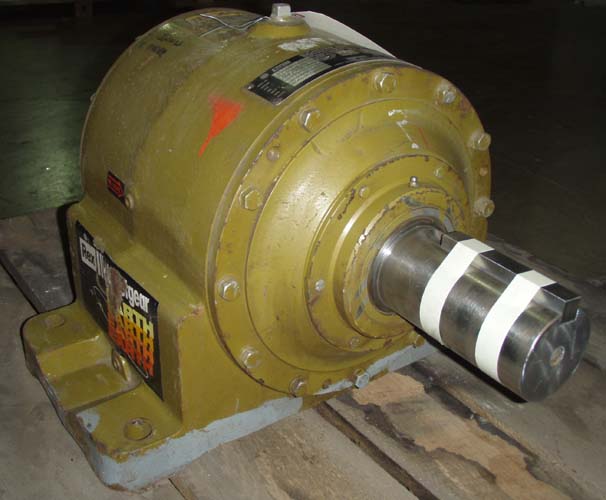

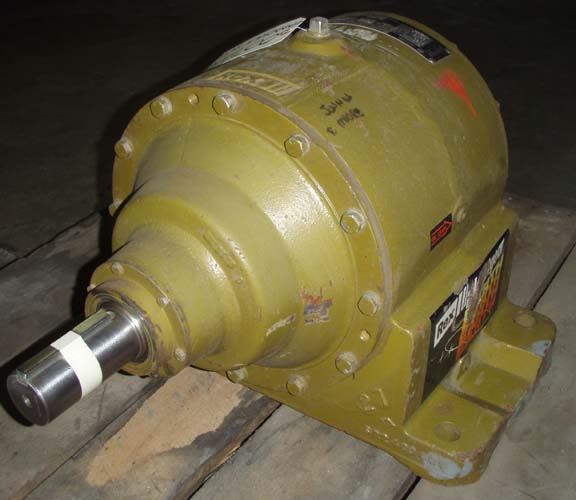

Manufacturer:       REXNORD PLANETGEAR Our ID No.       007268
Model:       EAAA0443 EARTH Planetary Ratio:       54.45
MO# or S/N       NC1705891 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       9/89 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       72,000 Lb-Inches Shaft Diameters High Speed:   2.125
Low Speed:   3.50
Weight       481 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
54.45:1

32.14 RPM
38.39 HP
1430 RPM
26.26 RPM
31.37 HP
1170 RPM
21.5 RPM
25.67 HP
870 RPM
15.98 RPM
19.09 HP
Notes:
Condition: NEW SURPLUS
