Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       MORSE Our ID No.       007279
Model:       50RW1-LR Ratio:       50:1
MO# or S/N       A96MQ0008 Alt. S/N
IP Speed       1750 HP rating       4.27 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       5,899 Lb-Inches Shaft Diameters High Speed:   1.375
Low Speed:   2.375
Weight       232 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
50:1

35 RPM
4.27 HP
1170 RPM
23.4 RPM
3.73 HP
870 RPM
17.4 RPM
3.36 HP
580 RPM
11.6 RPM
2.76 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

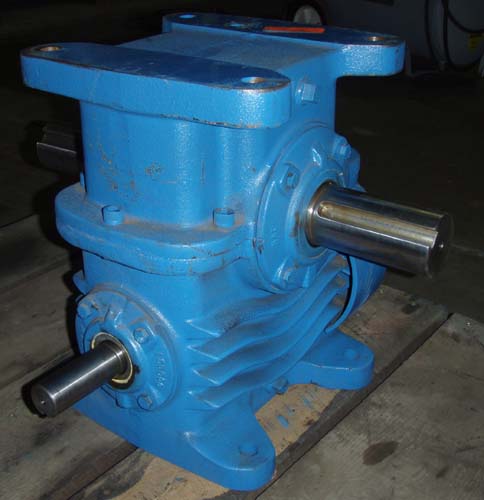

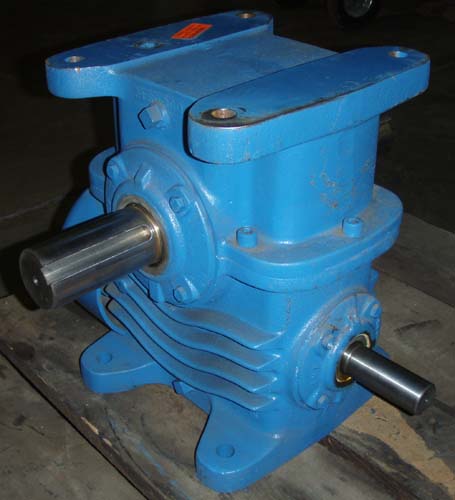

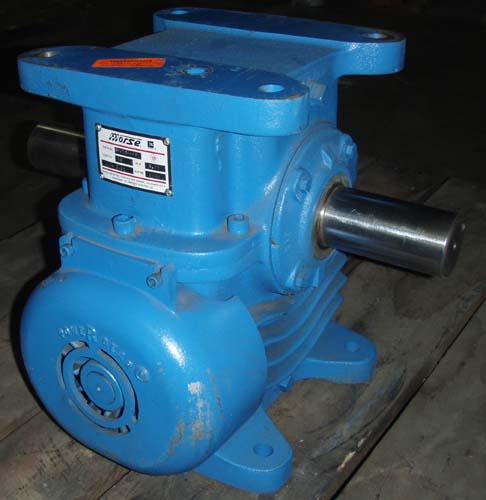

Click on images for larger view.
