N A M E P L A T E       D A T A
Manufacturer:       REXNORD PLANETGEAR Our ID No.       007282
Model:       YA1A0033-23971 Ratio:       11.02
MO# or S/N       23971-1A Alt. S/N       1048731
IP Speed       2000 HP rating       11.6 Cat. Rating
OP Speed:       181 SF / SC       2.6
Date       4-96 Oil Capacity       0.25 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       10,000 Lb-Inches Shaft Diameters High Speed:   1.625
Low Speed:   2.50
Weight       150 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
11.02:1

159 RPM
28.52 HP
1430 RPM
130 RPM
23.31 HP
1170 RPM
106 RPM
19.07 HP
870 RPM
79 RPM
14.18 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

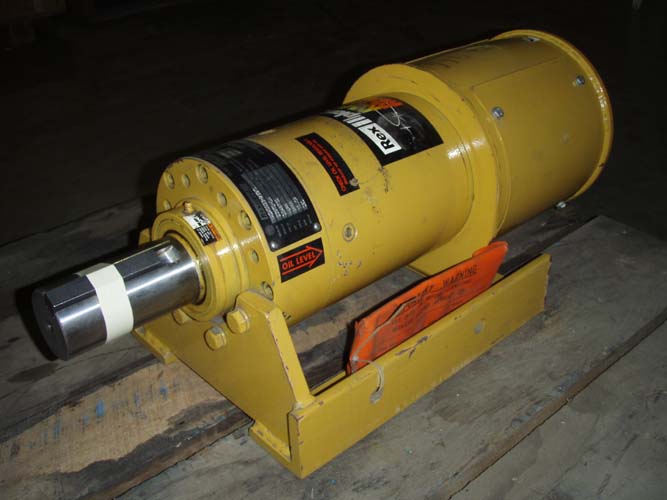

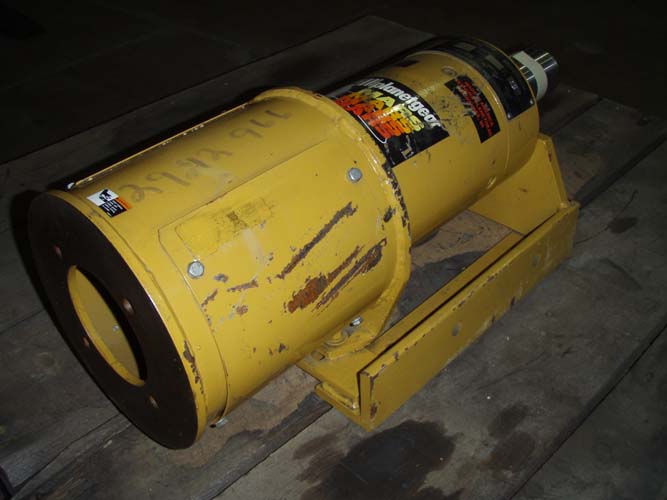

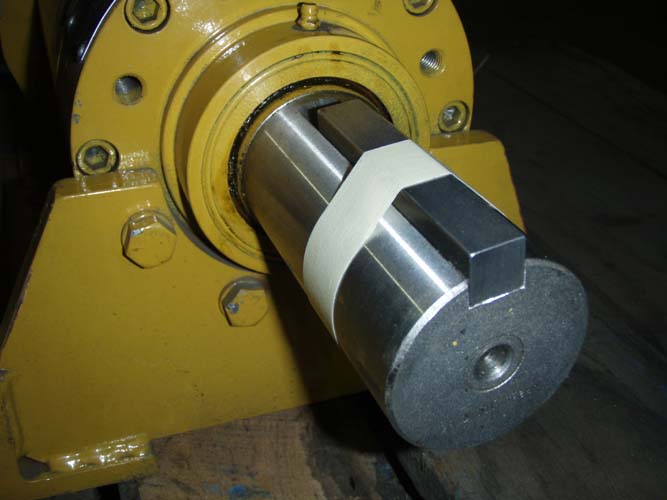

Click on images for larger view.
