Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

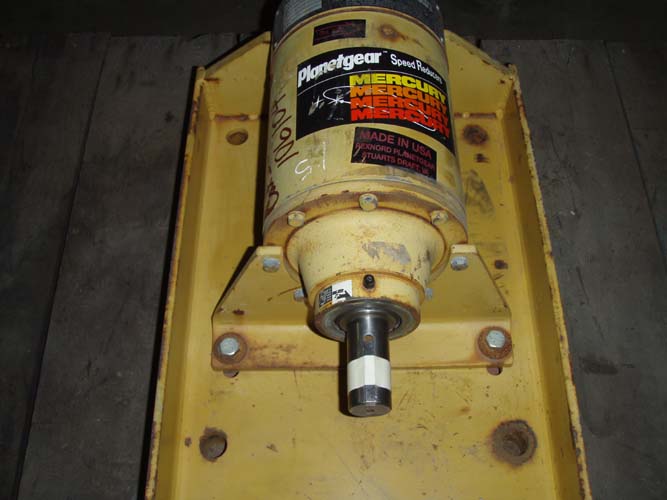

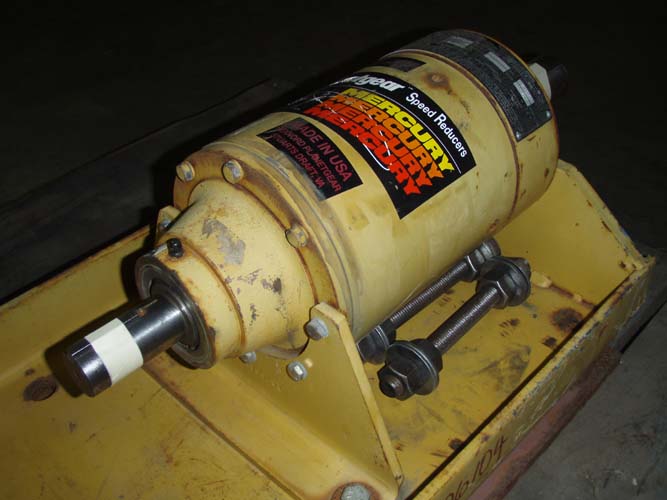

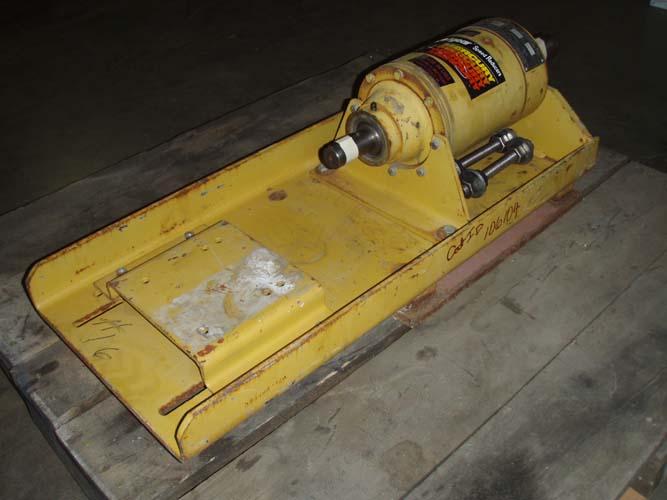

Manufacturer:       REXNORD PLANETGEAR Our ID No.       007283
Model:       XABA0554 Ratio:       80.01
MO# or S/N       BH1160 Alt. S/N       138894
IP Speed       1750 HP rating       1 Cat. Rating
OP Speed:       22 SF / SC       1.5
Date       5-06 Oil Capacity       0.25 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N

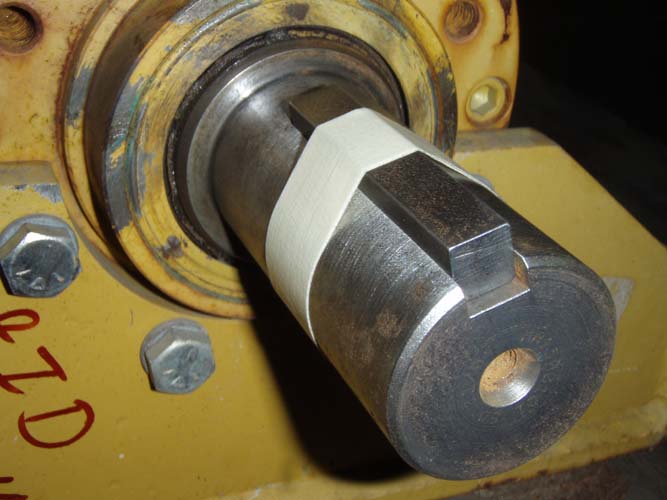

Torque Rating       6,000 Lb-Inches Shaft Diameters High Speed:   1.375
Low Speed:   2.00
Weight       144 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
80.01:1

22 RPM
2.93 HP
1430 RPM
17.9 RPM
2.40 HP
1170 RPM
14.6 RPM
1.96 HP
870 RPM
10.9 RPM
1.46 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
