Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       HUBCITY POWERATIO 4000 Our ID No.       007287
Model:       HI4062E Ratio:       51.25
MO# or S/N       0250-I0449 Alt. S/N
IP Speed       HP rating       2.0 Cat. Rating
OP Speed:       38.9 SF / SC       1.17
Date       06/09 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       4,120 Lb-Inches Shaft Diameters High Speed:   .625 56C
Low Speed:   1.250
Weight       46 Lbs Approx. Assembly       B3
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
51.25:1

34.1 RPM
2.33 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

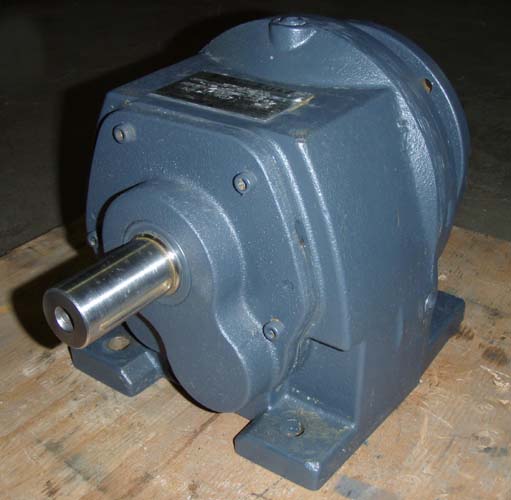

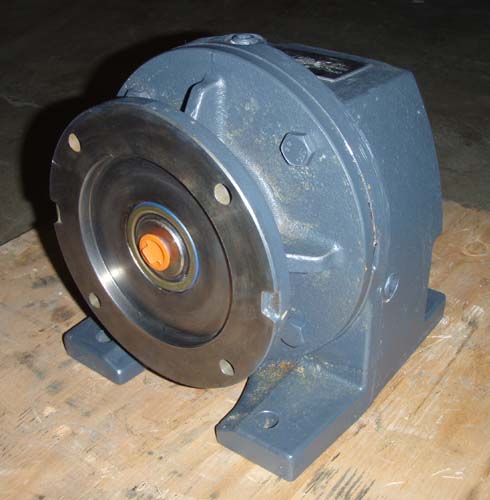

Click on images for larger view.
