Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       BOSTON GEAR Our ID No.       007297
Model:       VR158 NM5 Ratio:       1:1
MO# or S/N       9-42266-50 Alt. S/N
IP Speed       1750 HP rating       53.4 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       1,834 Lb-Inches Shaft Diameters High Speed:   1.500
Low Speed:   1.500
Weight       104 Lbs Approx. Assembly       E
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
1:1

1750 RPM
50.9 HP
1170 RPM
1170 RPM
40.9 HP
720 RPM
720 RPM
25.4 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

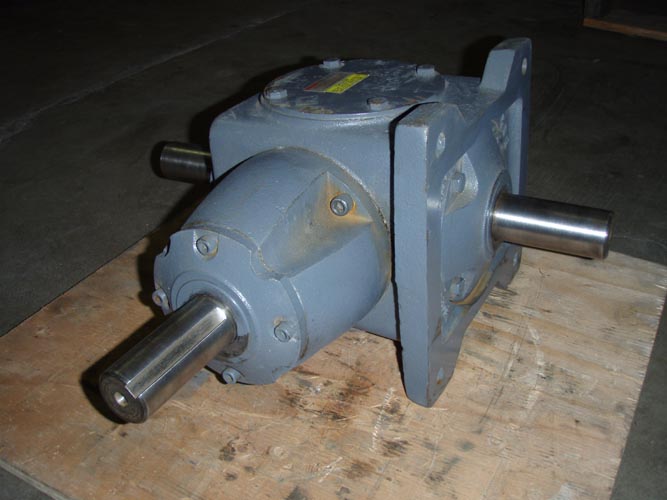

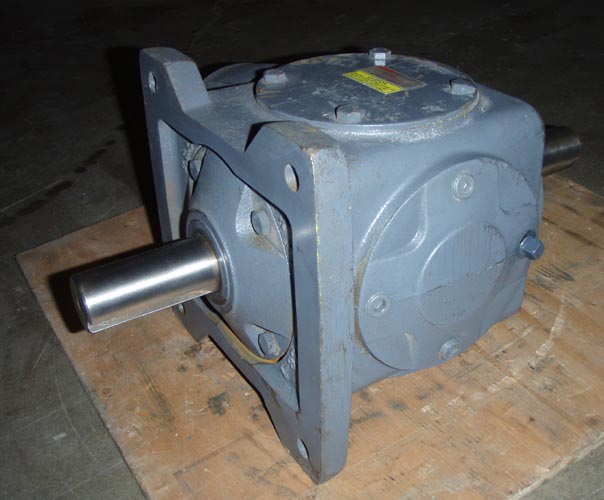

Click on images for larger view.
