- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

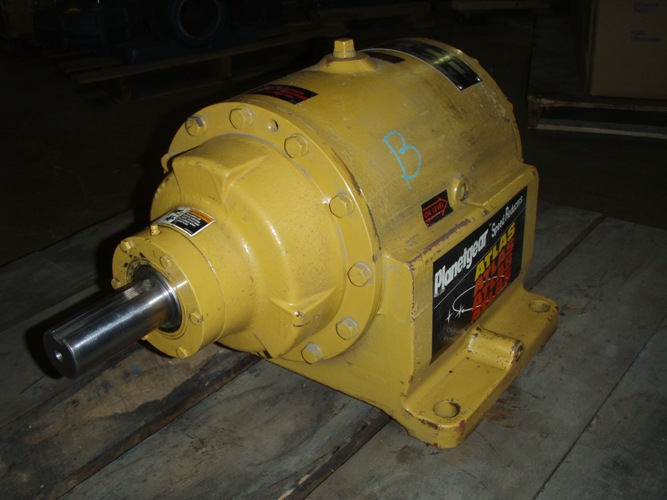

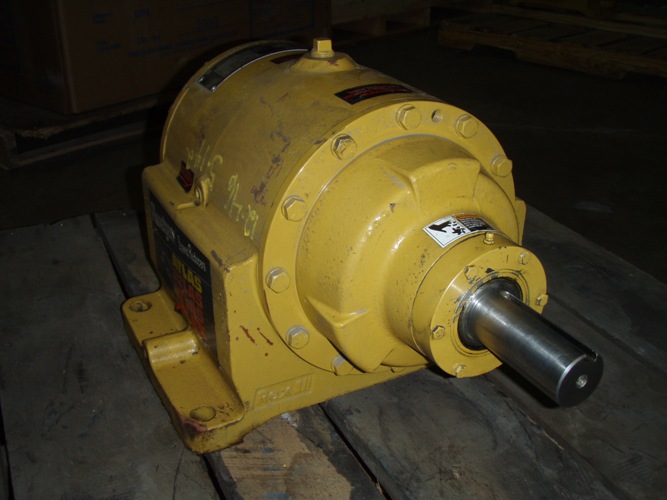

Manufacturer:      REXNORD Our ID No.      007309
Model:      ATLAS AAAA0433 Ratio:      43.78
MO# or S/N      BH0792 Alt. S/N      1430227
IP Speed      1750 HP rating      10 Cat. Rating
OP Speed:      40 SF / SC      2.0
Date      2/05 Oil Capacity      0.38
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      33,000 Lb-Inches Shaft Diameters High Speed:  1.875

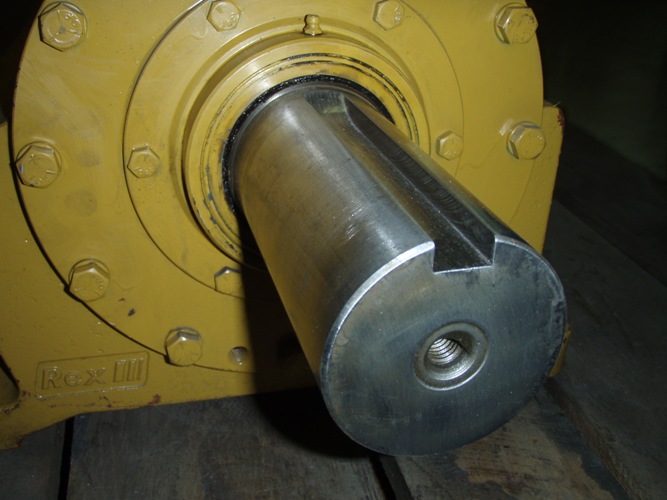

Low Speed:  3.250
Weight      325 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
43.78

40 RPM
27.10 HP
1430 RPM
33 RPM
22.14 HP
1170 RPM
26 RPM
18.12 HP
870 RPM
20 RPM
13.47 HP
720 RPM
RPM
HP
580 RPM
RPM
HP
Notes:
Condition:


Used Surplus
