Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       REXNORD PLANETGEAR Our ID No.       007314
Model:       AAAA0444-26249 Ratio:       69.63
MO# or S/N       26249-1A Alt. S/N
IP Speed       435/1305 HP rating       3 Cat. Rating
OP Speed:       6.2/18.8 SF / SC       1.25
Date       2/97 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       35,000 Lb-Inches Shaft Diameters High Speed:   1.875
Low Speed:   3.250
Weight       325 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
69.63:1

25 RPM
16.78 HP
1430 RPM
20.5 RPM
13.71 HP
1170 RPM
17 RPM
11.22 HP
870 RPM
12.5 RPM
8.34 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

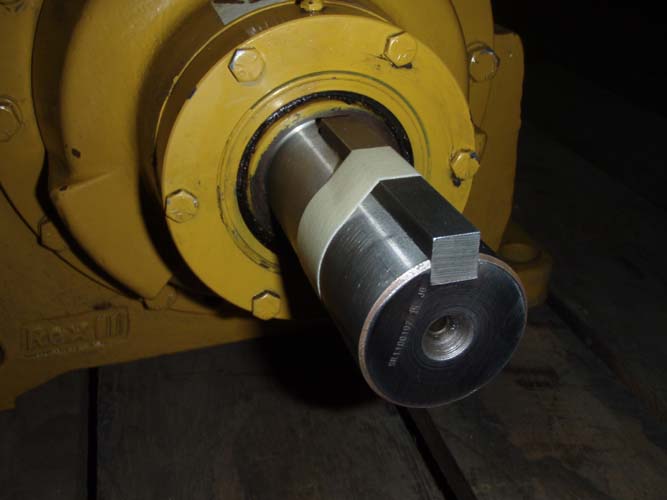

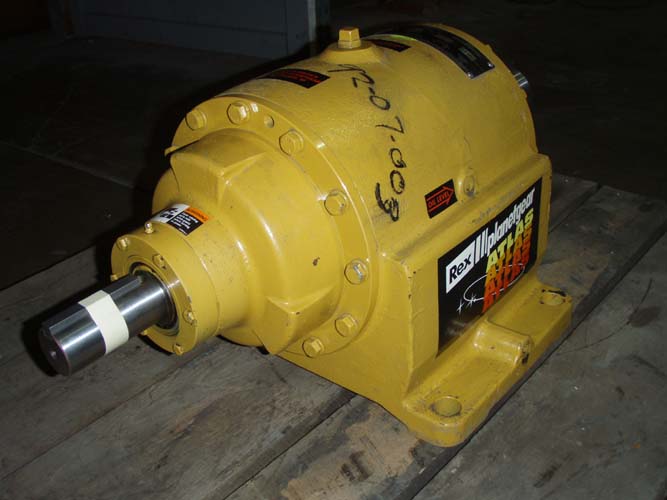

Click on images for larger view.
