Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007326
Model:       152-1060FZB3A Ratio:       25.69
MO# or S/N       8-7M3619 Alt. S/N
IP Speed       1750 HP rating       15 Cat. Rating
OP Speed:       68 SF / SC
Date       10/87 Oil Capacity       6.5 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       29200 Lb-Inches Shaft Diameters High Speed:   1.8750
Low Speed:   3.000
Weight       750 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25.69:1

68 RPM
31.6 HP
1430 RPM
56 RPM
26.0 HP
1170 RPM
45 RPM
21.4 HP
870 RPM
34 RPM
16.1 HP
720 RPM
28 RPM
13.4 HP
580 RPM
22 RPM
10.8 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

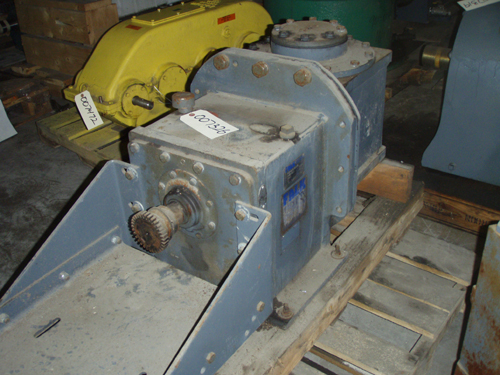

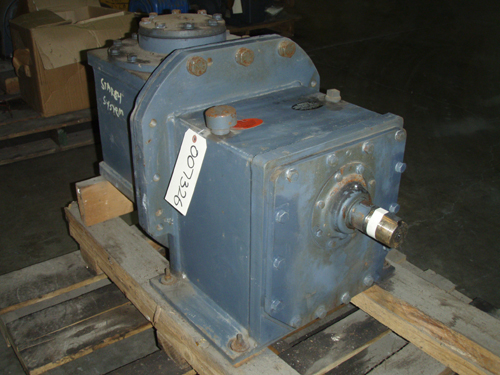

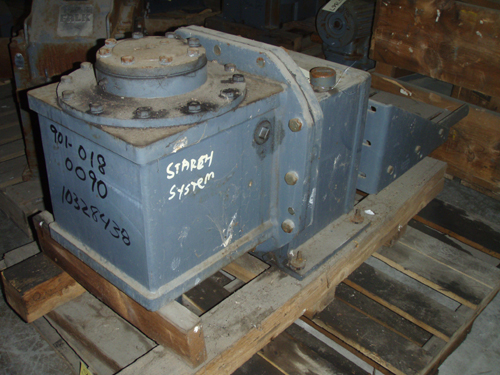

Click on images for larger view.
