Klistoff Equipment & Machinery, Inc.

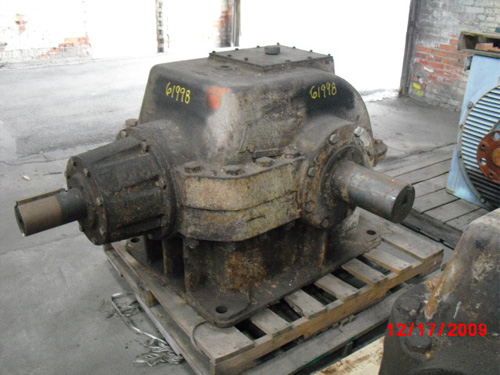

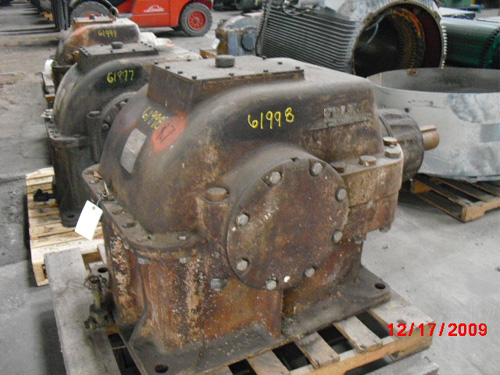

- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007368
Model:       2110GHB1-A Ratio:       4.071
MO# or S/N       Alt. S/N
IP Speed       1244 HP rating       300 Cat. Rating
OP Speed:       306 SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       139,000 Lb-Inches Shaft Diameters High Speed:   4.000
Low Speed:   5.500
Weight       2,990 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
4.071:1

946 RPM
420 HP
215 HP
1430 RPM
822 RPM
350 HP
270 HP
1170 RPM
714 RPM
280 HP
325 HP
870 RPM
580 RPM
210 HP
436 HP
720 RPM
508 RPM
175 HP
HP
580 RPM
437 RPM
140 HP
HP
Notes:
Condition: USED
