Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007369
Model:       2100GHB1-A Ratio:       3.357
MO# or S/N       Alt. S/N
IP Speed       1282 HP rating       300 Cat. Rating
OP Speed:       382 SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       124,000 Lb-Inches Shaft Diameters High Speed:   4.000
Low Speed:   5.500
Weight       2,990 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
3.357:1

1027 RPM
520 HP
192 HP
1430 RPM
892 RPM
420 HP
253 HP
1170 RPM
775 RPM
350 HP
316 HP
870 RPM
630 RPM
260 HP
427 HP
720 RPM
552 RPM
210 HP
HP
580 RPM
474 RPM
175 HP
HP
Notes:
Condition: USED



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

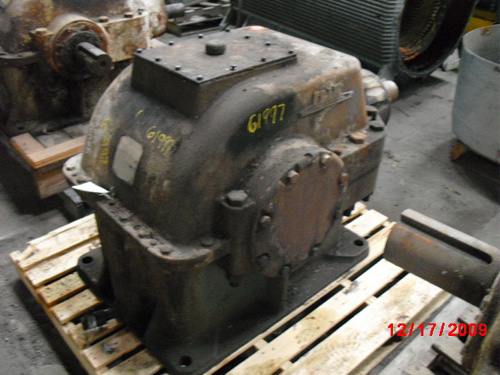

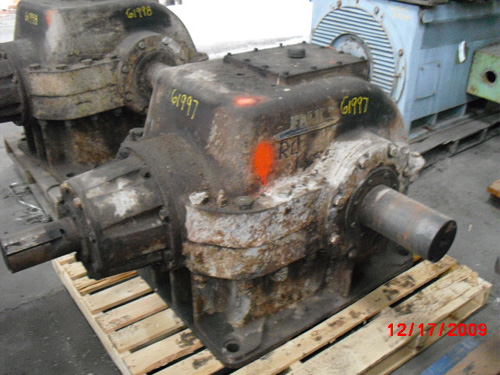

Click on images for larger view.
