Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007372
Model:       2090YB2-L Ratio:       5.144
MO# or S/N       Alt. S/N
IP Speed       1150 HP rating       200 Cat. Rating
OP Speed:       224 SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       75,400 Lb-Inches Shaft Diameters High Speed:   2.250
Low Speed:   4.500
Weight       1,520 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5.144:1

350 RPM
407 HP
1430 RPM
280 RPM
332 HP
1170 RPM
230 RPM
272 HP
870 RPM
175 RPM
202 HP
720 RPM
140 RPM
167 HP
580 RPM
115 RPM
135 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

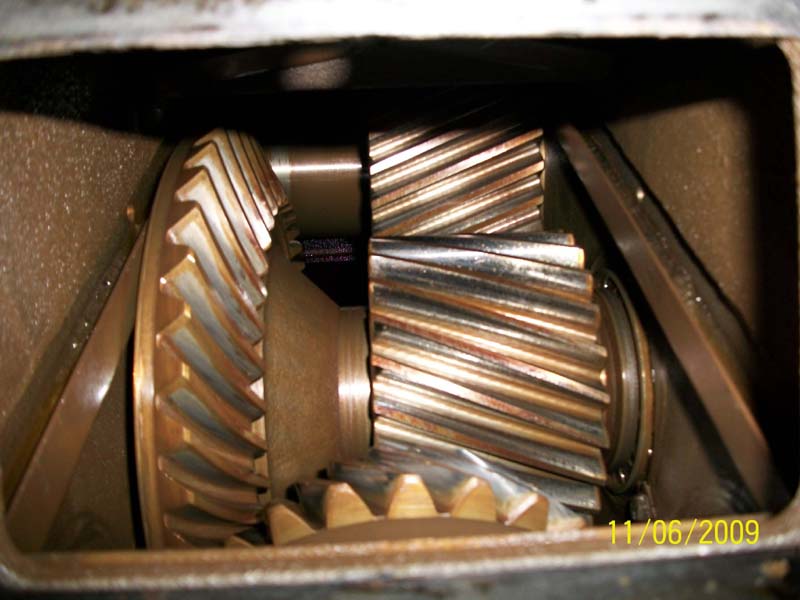

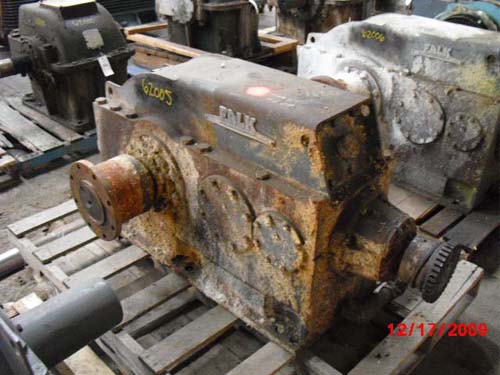

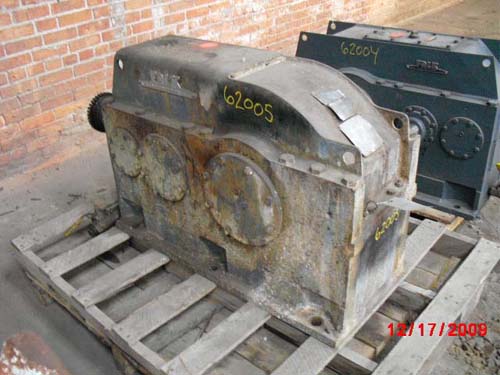

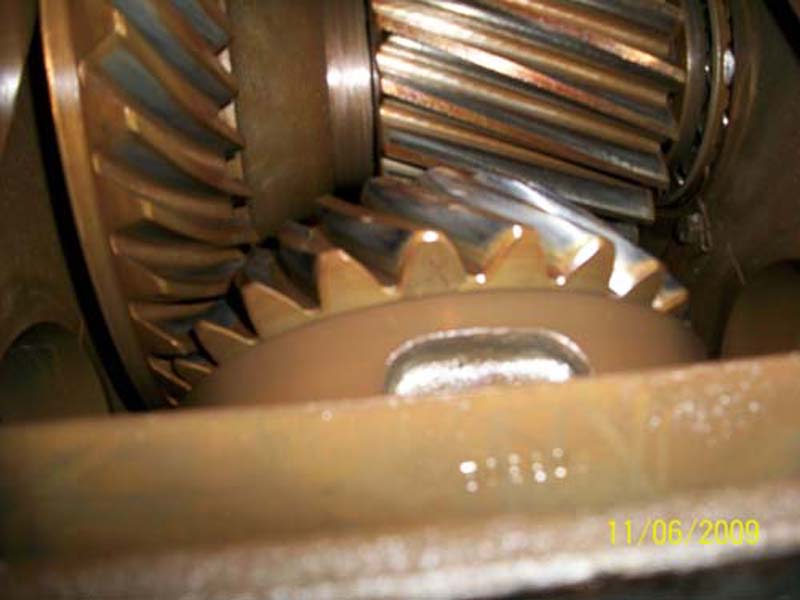

Click on images for larger view.
