- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK OMNIBOX Our ID No.       007473
Model:       1425WXQM1A Ratio:       15
MO# or S/N       40009420506 Alt. S/N
IP Speed       HP rating       9.673 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       4724 Lb-Inches Shaft Diameters High Speed:   1.125
Low Speed:   2.1875
Weight       174 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15:1

117 RPM
9.673 HP
1170 RPM
78 RPM
7.916 HP
870 RPM
58 RPM
6.978 HP
Notes:
Condition:


NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

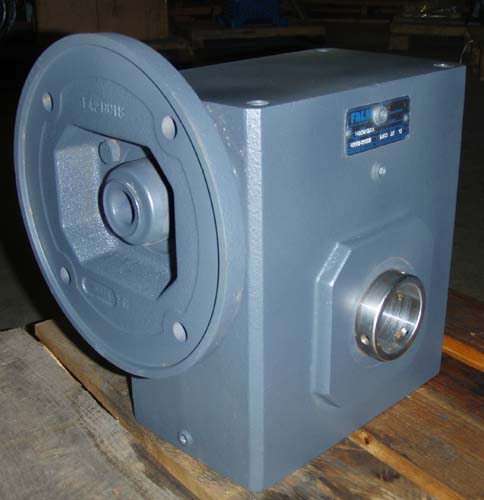

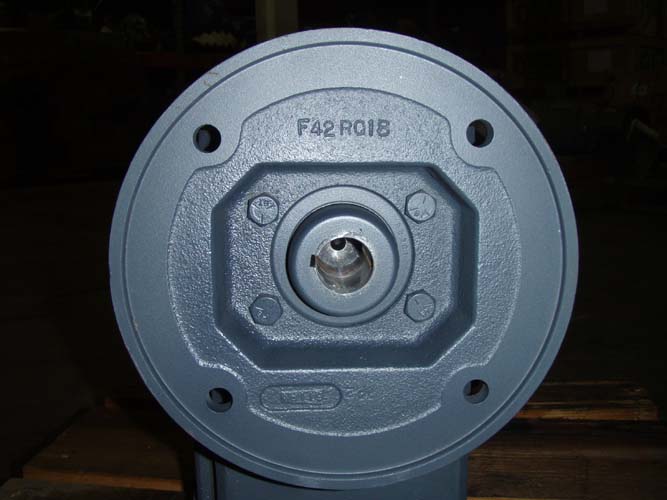

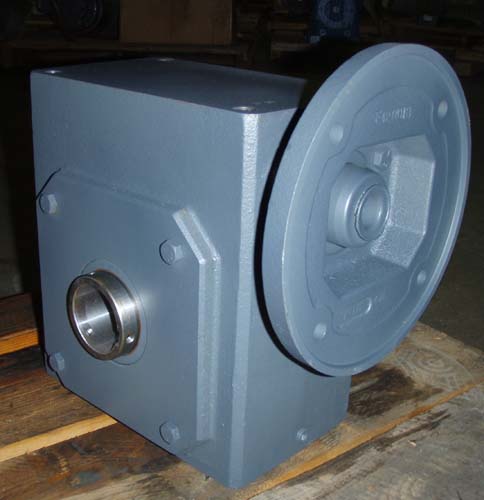

Click on images for larger view.
