Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -
M O T O R     I N F O R M A T I O N
Manufacturer:       U.S. ELECTRICAL MOTORS UNUSED SURPLUS
      CORRO-DUTY FOR HAZARDOUS LOCATIONS
      CLASS 1, GROUP D 		AC / DC       KEM #       007534
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical    Pump    Slip Ring
N A M E P L A T E      D A T A
 HP   60  RPM   1780  Frame   364T  Enclosure   TE
 Volts   230/460  Amps   143/71.5  Cycles    Phase
 Type   LC  NEMA Class Design   B  Code   6  Insulation Class   F
 Max Ambient   40  Service Factor   1.15  Duty   CONT
 Model    Serial Number   650002/B03A364R592R-3  Drive End Brg   6313-JC3  Opp Dr End Brg   6212-JC3

 Field Volts    Field Amp Max    Approx Rheo Resis    Ohms
 Winding    Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight
Notes:
Condition:
UNUSED SURPLUS CORRO-DUTY FOR HAZARDOUS LOCATIONS CLASS 1, GROUP D


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

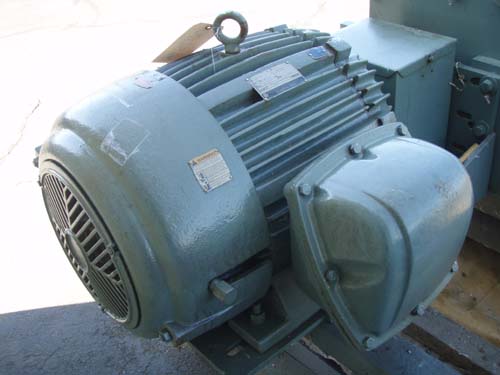

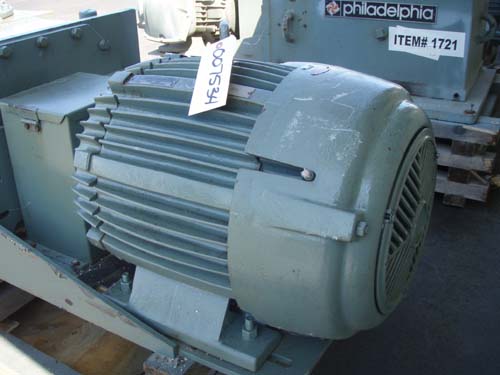

Click on images for larger view.
