Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       NORD GEAR Our ID No.       007538
Model:       SK9092.1W Ratio:       80
MO# or S/N       8506522226.00 Alt. S/N
IP Speed       22 HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:   2.500
Low Speed:   5.500
Weight       3500 Lbs Approx. Assembly       B3A
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
80:1

21.875 RPM
98.86 HP
1150 RPM
14.375 RPM
65.25 HP
875 RPM
10.9375 RPM
49.43 HP
580 RPM
7.25 RPM
32.62 HP
Notes:
Condition: NEW SURPLUS




Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

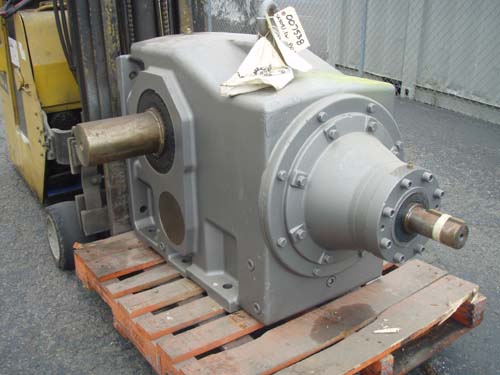

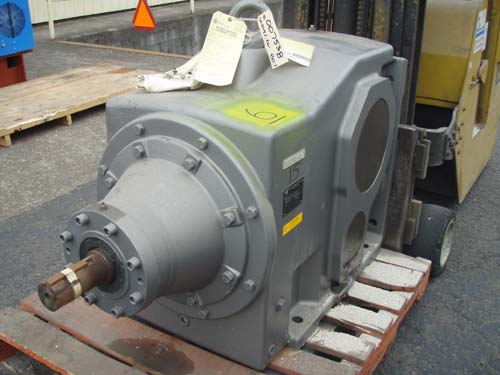

Click on images for larger view.
