- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       DODGE TXM Our ID No.       007547
Model:       TXM 500 Ratio:       16.82
MO# or S/N       014112 UN Alt. S/N
IP Speed       HP rating       40.4 Cat. Rating
OP Speed:       104 SF / SC       1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       235,000 Lb-Inches Shaft Diameters High Speed:   1.875
Low Speed:   2.750
Weight       500 Lbs Approx. Assembly       A1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
16.82:1

102.4 RPM
40.4 HP
1450 RPM
84.8 RPM
33.5 HP
1170 RPM
68.5 RPM
28.1 HP
870 RPM
50.9 RPM
20.9 HP
720 RPM
42.1 RPM
18.1 HP
580 RPM
33.9 RPM
14.6 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

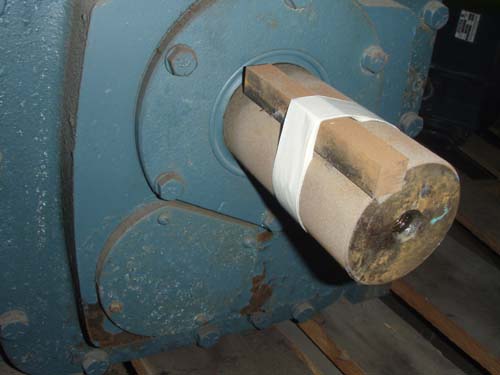

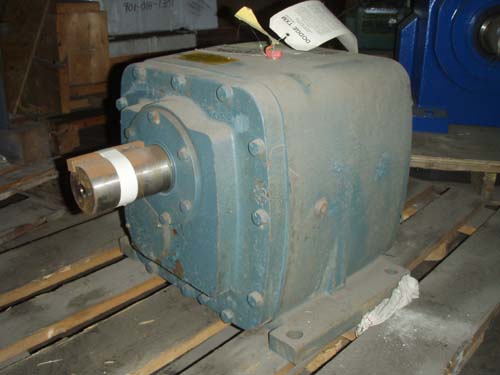

Click on images for larger view.
