- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       DODGE TXM Our ID No.       007552
Model:       TXM300 Ratio:       21.0
MO# or S/N       014067 SN Alt. S/N
IP Speed       HP rating       14.5 Cat. Rating
OP Speed:       87 SF / SC
Date       Oil Capacity       10 QTS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       10,500 Lb-Inches Shaft Diameters High Speed:   1.375
Low Speed:   2.00
Weight       300 Lbs Approx. Assembly       A1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
21.0:1

83.6 RPM
14.5 HP
1450 RPM
69.3 RPM
12.8 HP
1170 RPM
55.9 RPM
10.7 HP
870 RPM
41.6 RPM
7.96 HP
720 RPM
34.4 RPM
6.59 HP
580 RPM
27.7 RPM
5.31 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

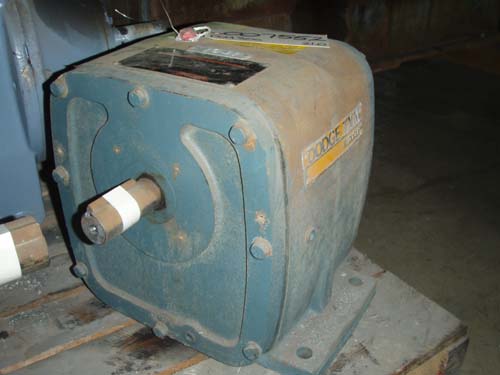

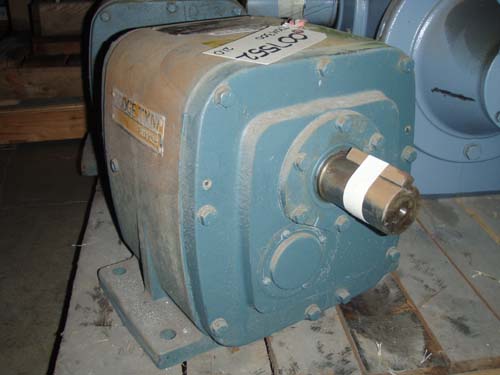

Click on images for larger view.
