Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME

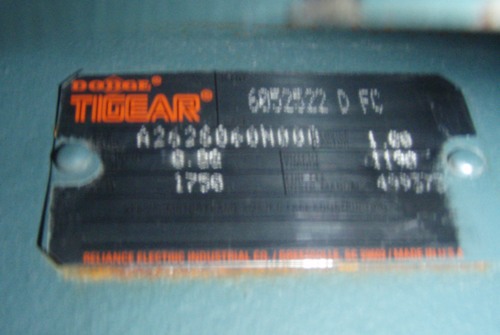

N A M E P L A T E       D A T A
Manufacturer:      DODGE TIGEAR Our ID No.      007587
Model:      A262S060N000 Ratio:      60.1
MO# or S/N      6052522 D FC Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1,190 Lb-Inches Shaft Diameters High Speed:
Low Speed:  1/2X1/4X2-1/2 HOLLOW
Weight      52 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM

29 RPM
1.68 HP
1430 RPM
24 RPM
1.68 HP
1170 RPM
20 RPM
1.37 HP
870 RPM
RPM
HP
720 RPM
RPM
HP
580 RPM
10 RPM
1.05 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

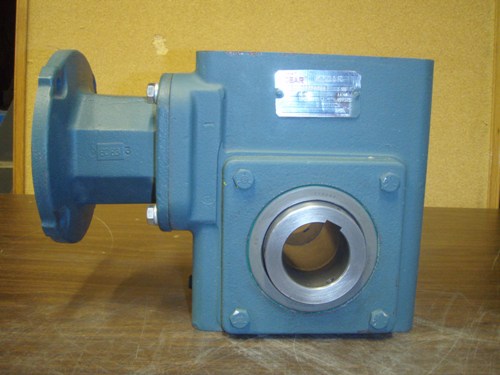

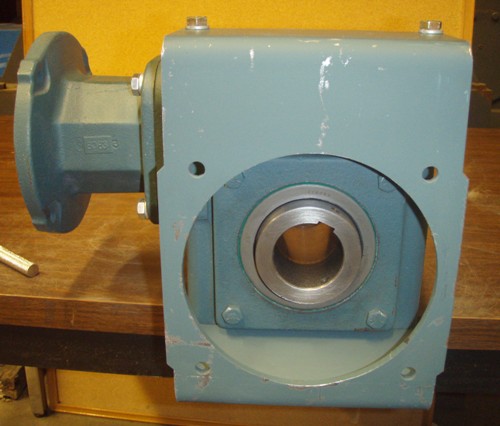

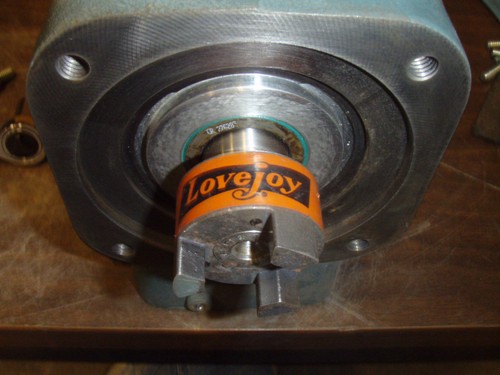

Click on images for larger view.
