N A M E P L A T E       D A T A
Manufacturer:      FOOTE JONES Our ID No.      007643
Model:      HYP-U-100 Ratio:      15.00
MO# or S/N      320492 Alt. S/N
IP Speed       HP rating      62.8 Cat. Rating
OP Speed:       SF / SC
Date      4/94 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      27,970 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  3.875
Weight       Lbs Approx. Assembly      R
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15.00

116.5 RPM
62.8 HP
1430 RPM
RPM
HP
1170 RPM
76.6 RPM
51.6 HP
870 RPM
58 RPM
45.1 HP
720 RPM
RPM
HP
580 RPM
38.6 RPM
37.7 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

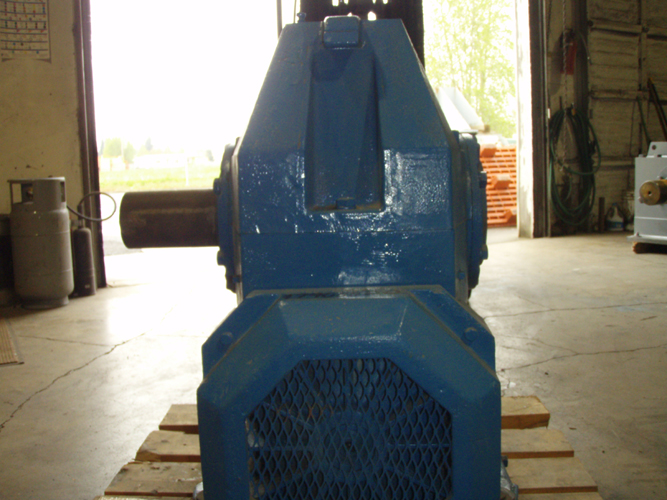

Click on images for larger view.
