- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FOOTE JONES Our ID No.       007694
Model:       1602 HLE Ratio:       31.447
MO# or S/N       403499 Alt. S/N
IP Speed       580 HP rating       100 Cat. Rating
OP Speed:       18.4 SF / SC       1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       290,000 Lb-Inches Shaft Diameters High Speed:   3,000
Low Speed:   6,500
Weight       4,000 Lbs Approx. Assembly       8
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
31.447

56 RPM
263 HP
1430 RPM
RPM
HP
1170 RPM
37 RPM
188 HP
870 RPM
28 RPM
140 HP
720 RPM
23 RPM
120 HP
580 RPM
18 RPM
100 HP
Notes:
Condition:


Used

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

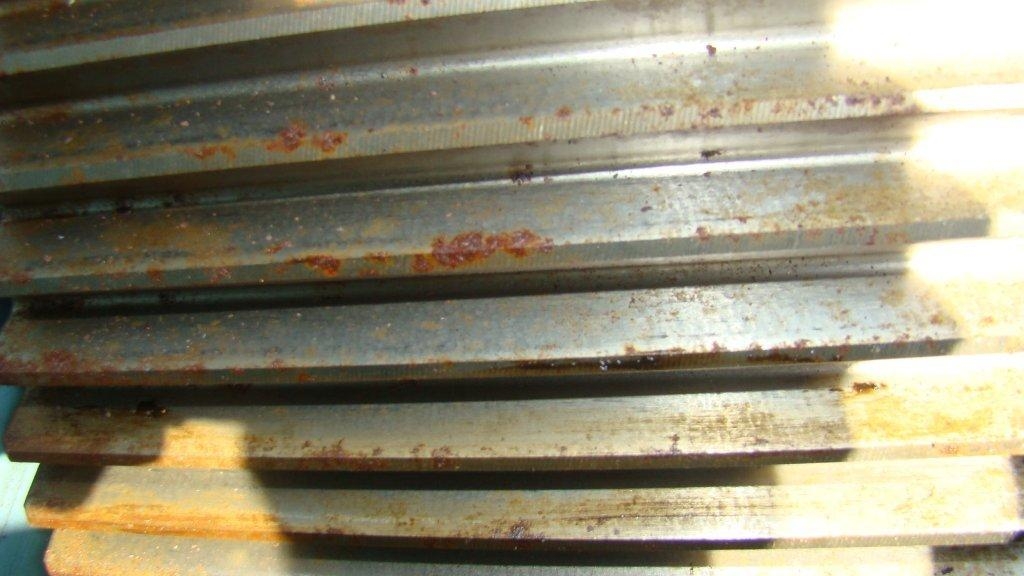

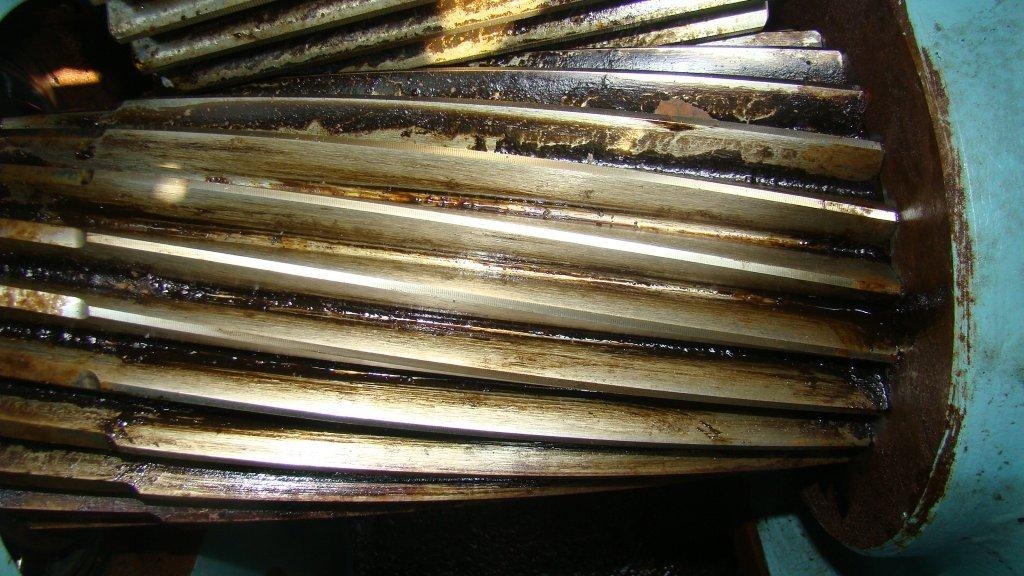

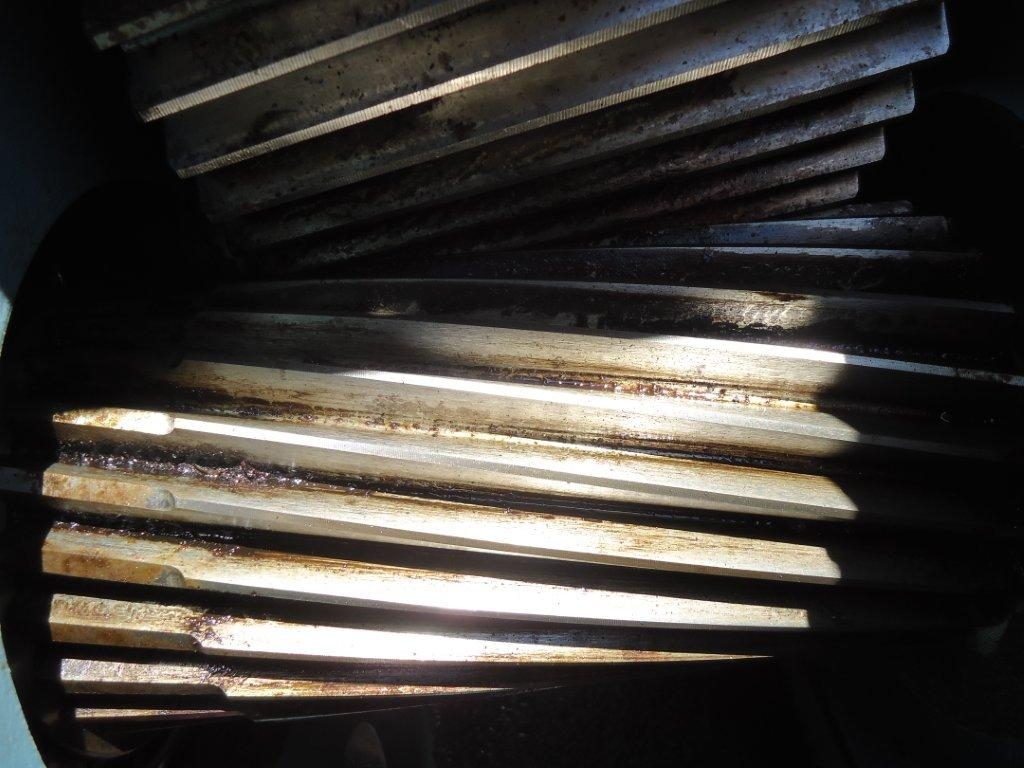

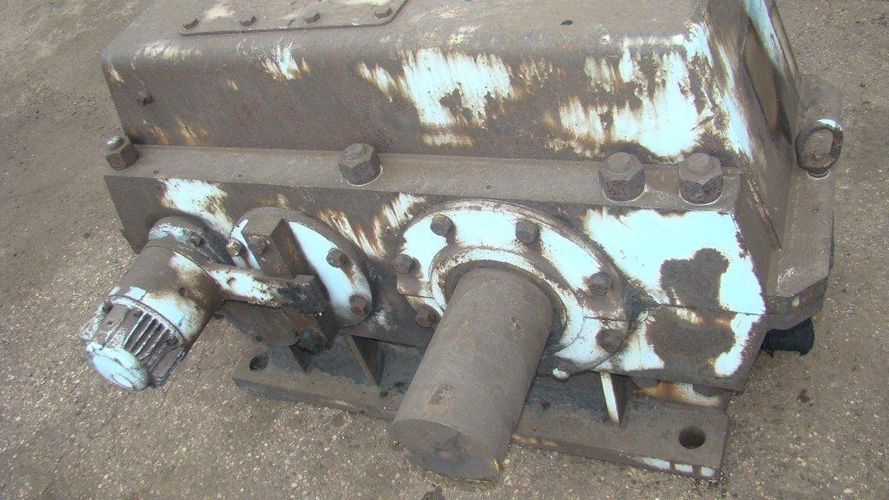

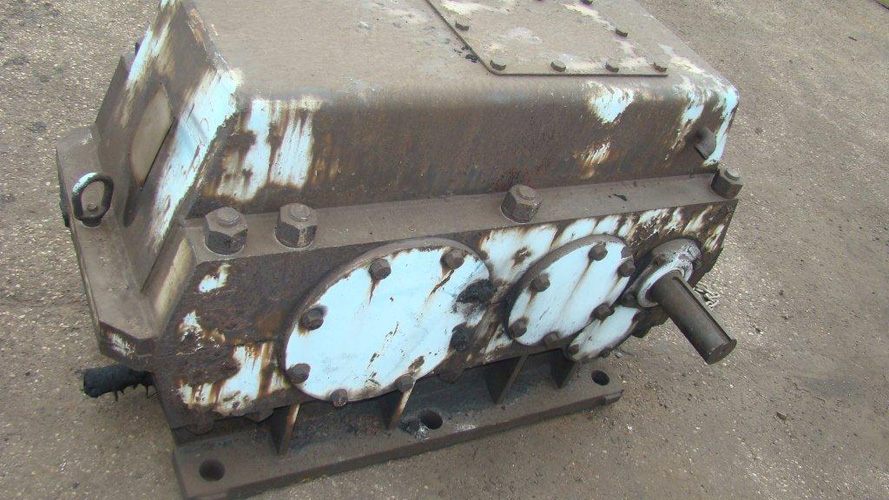

Click on images for larger view.
