- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FOOTE JONES Our ID No.       007695
Model:       1603 HLE Ratio:       145.8
MO# or S/N       403498 Alt. S/N
IP Speed       582 HP rating       24.1 Cat. Rating
OP Speed:       4.0 SF / SC       1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       355,000 Lb-Inches Shaft Diameters High Speed:   3,000
Low Speed:   6,500
Weight       4,100 Lbs Approx. Assembly       8
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
145.8

RPM
HP
1430 RPM
RPM
HP
1170 RPM
RPM
HP
870 RPM
RPM
HP
720 RPM
RPM
HP
580 RPM
4.0 RPM
22.8 HP
Notes:
Condition:


Used

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

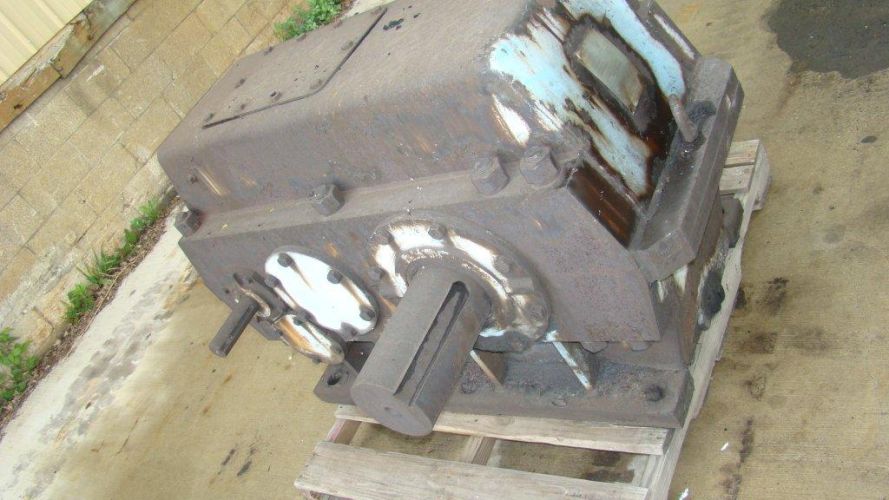

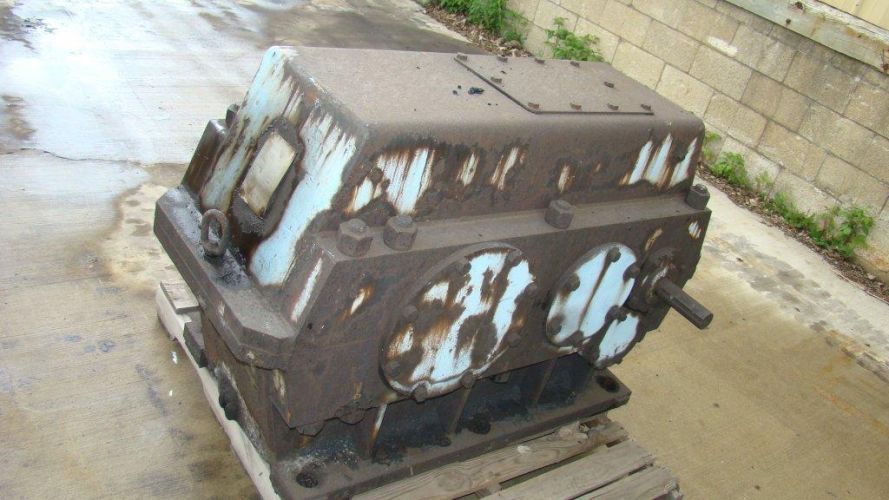

Click on images for larger view.
