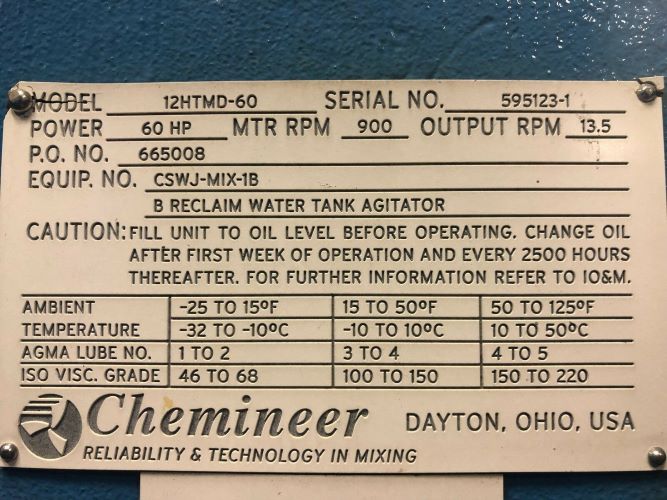

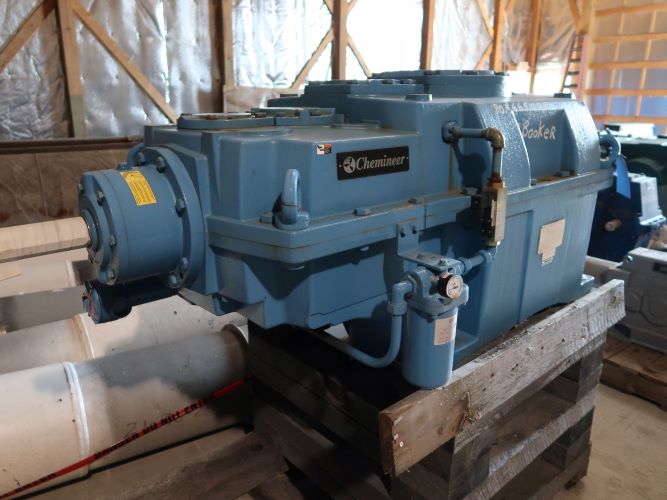

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | Chemineer / Hansen Transmission | Our ID No. | 008308 | ||
| Model: | 12HTMD-60 / QVRG3F-CDL-63 | Ratio: | 64.188 | ||

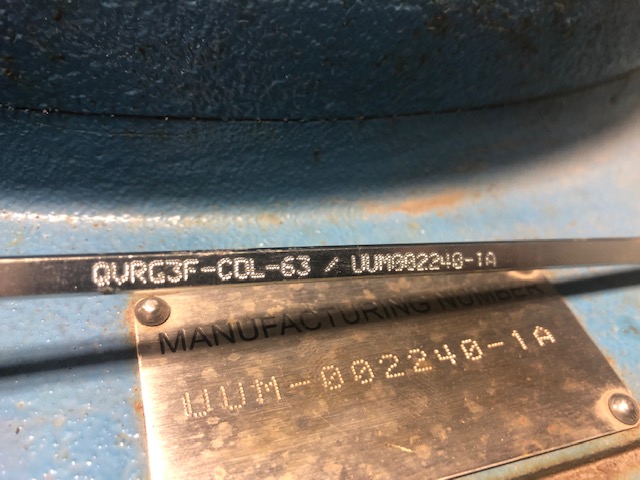

| MO# or S/N | 595123-1 / UUM-00240-1A | Alt. S/N | |||
| IP Speed: | 870 | HP rating: | 60 | Cat. Rating: | 129 |
| OP Speed: | 13.6 | SF / SC | 2.15 | ||
| Date: | 2015 | Oil Capacity: | |||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 600,000 Lb-Inches | High Speed Shaft Dia. | 65mm (2.559") | ||
| Catalog Weight | 5,500 Lbs Approx. | Low Speed Shaft Dia. | 9" tapered | ||
| Assembly | Low Speed Shaft "Down" | Centerline Low Speed Shaft to end of Input Shaft | 53.3 Inches | ||
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |

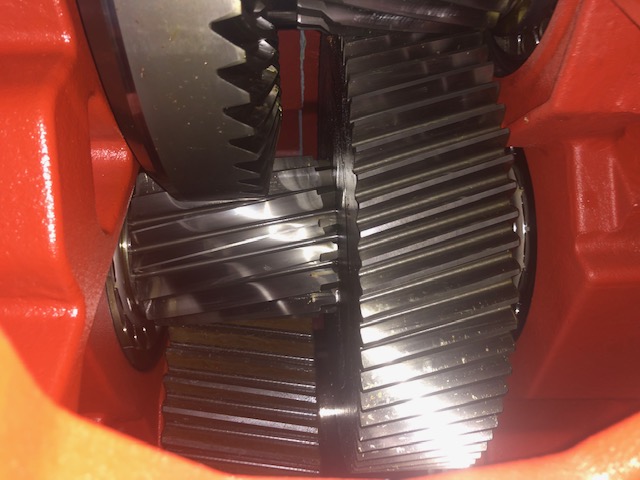

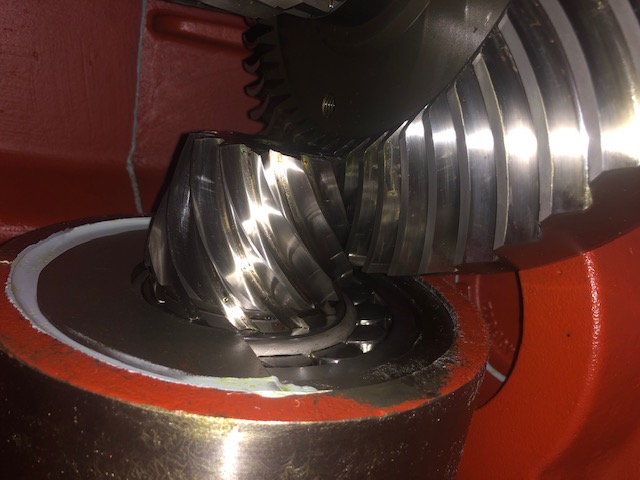

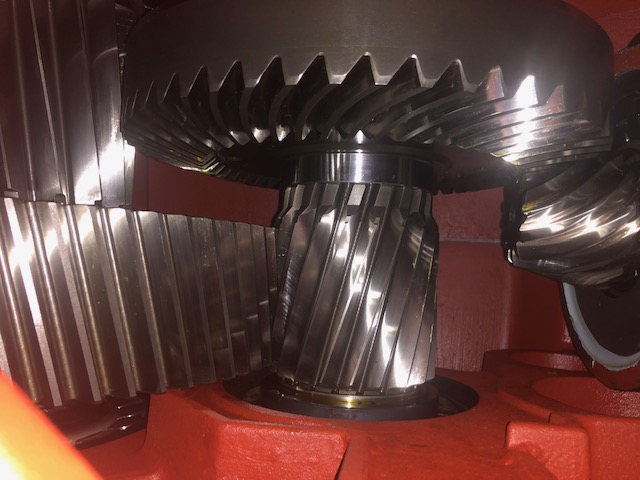

|---|---|---|---|---|
| 1800 RPM | 64.188:1 | 28.5 RPM | 265 HP | 147 HP |
| 1500 RPM | 24 RPM | 221 HP | 147 HP | |
| 1200 RPM | 19 RPM | 178 HP | 147 HP | |
| 1000 RPM | 16 RPM | 148 HP | 140 HP | |
| 900 RPM | 14.5 RPM | 134 HP | 134 HP | |
| 750 RPM | 12 RPM | 111 HP | 130 HP |
| Condition |
|---|
|
Notes: Rebuilt by others, or unused surplus |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
