Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      000646
Model:      7C2-02A4 Ratio:      9.490:1
MO# or S/N      6212-0884 Alt. S/N
IP Speed      870 RPM HP rating      35 HP Cat. Rating      61.1 HP
OP Speed:      95 RPM SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      35,400 Lb-Inches Shaft Diameters High Speed:  2.375
Low Speed:  3.875
Weight      1200 Lbs Approx. Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
9.490:1

190
106 HP
1430
155
91.0 HP
1170
125
81.7 HP
870
95
61.1 HP
720
77
52.0 HP
Notes:

Condition: USED





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

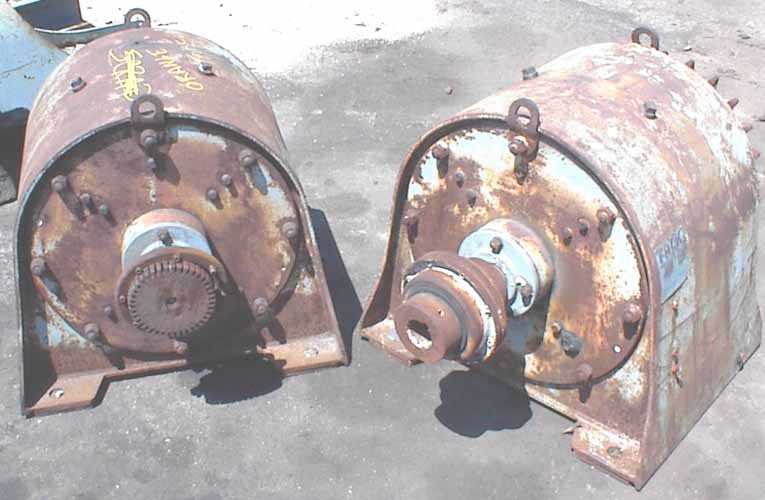

Click on images for larger view.
