Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      000651
Model:      1120FC3A Ratio:      38.83:1
MO# or S/N      9030984-06 Alt. S/N
IP Speed      1750 RPM HP rating      75 HP Cat. Rating      181 HP
OP Speed:      56 RPM SF / SC      2.41 - SF
Date       Oil Capacity      39 US Gallons
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      253,000 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  5.250
Weight      2400 Lbs Approx. Assembly
Notes:

Condition: Used, Good





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

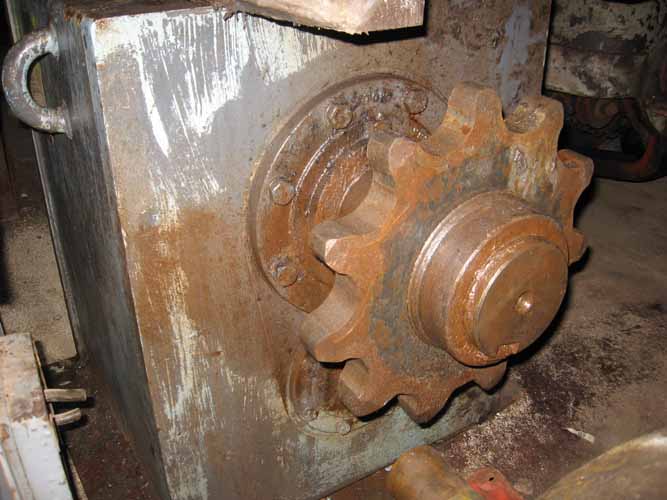

Click on images for larger view.
