Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      000955
Model:      1200LHXVD3A Ratio:      43.01:1
MO# or S/N      95-070533-01 Alt. S/N
IP Speed      1432 RPM HP rating      100 HP Cat. Rating
OP Speed:      33.33 RPM SF / SC      1.65 - SF
Date      2/96 Oil Capacity      13.9
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      313,000 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  7.750
Weight      4000 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
43.01:1

40
202 HP
1430
34
165 HP
1170
27
136 HP
870
21
101 HP
720
17
83.8 HP
580
14
37.5 HP
Notes:

Condition:





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

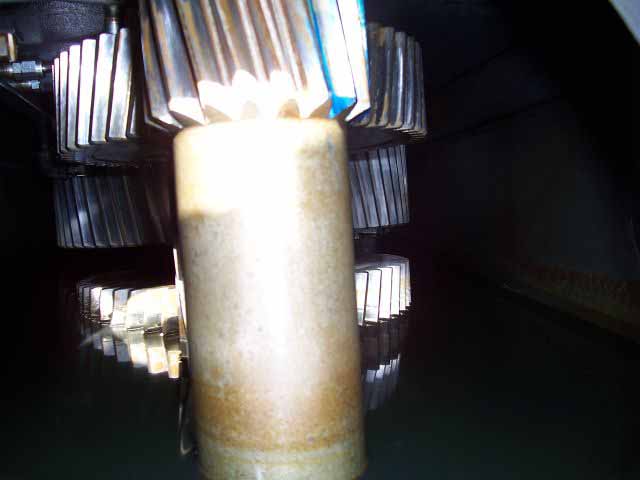

Click on images for larger view.
