Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      000959
Model:      1500LHXVD3S Ratio:      93.26:1
MO# or S/N      93065693-01 Alt. S/N
IP Speed      1212 RPM HP rating      125 HP Cat. Rating
OP Speed:      13 RPM SF / SC      1.5 - SF
Date      6/93 Oil Capacity      42.7
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      945,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  11.500
Weight      11,000 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
93.26:1

18
270 HP
1430
15
220 HP
1170
12
181 HP
870
9.1
134 HP
720
7.5
111 HP
580
6.1
89 HP
Notes:

Condition:





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

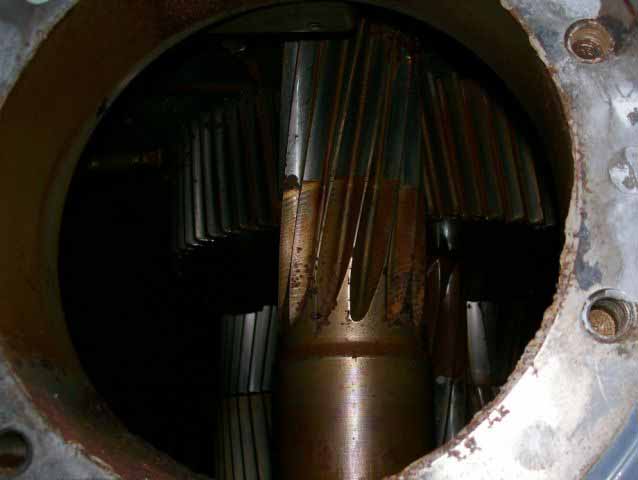

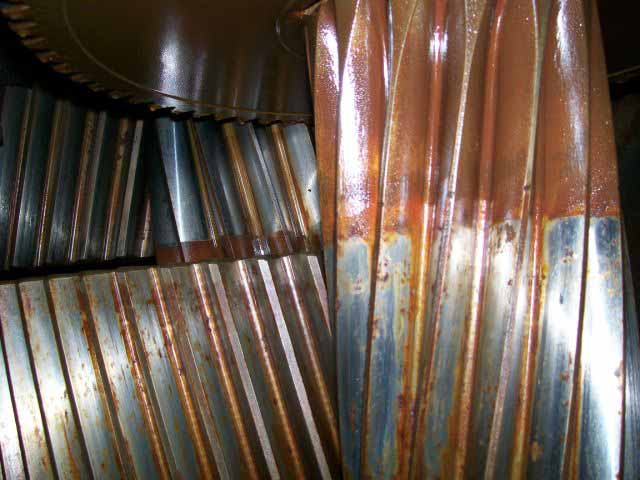

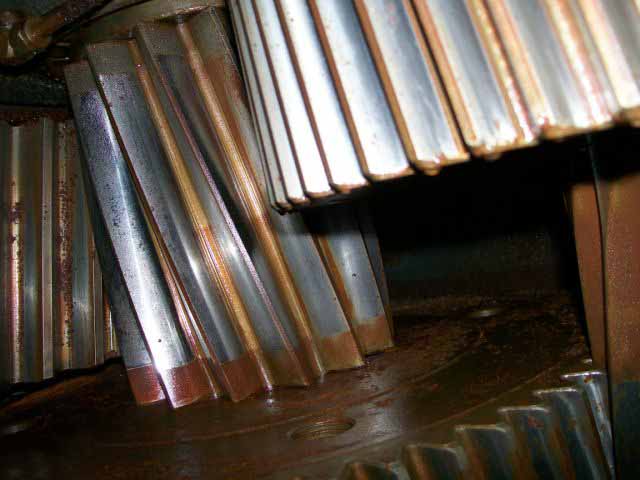

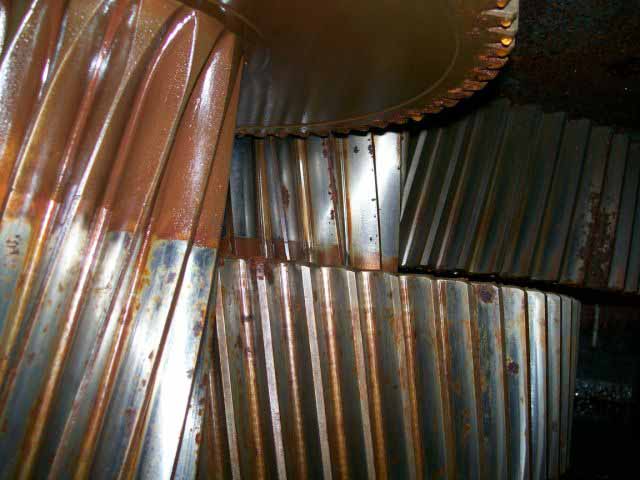

Click on images for larger view.
