Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Link-Belt Our ID No.      001537
Model:      D280-12V-1-11 Ratio:      24.86
MO# or S/N      487-0312-B1 Alt. S/N
IP Speed      1750 HP rating      125 Cat. Rating
OP Speed:      70.4 SF / SC      1.9
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      222,000 Lb-Inches Shaft Diameters High Speed:  2.125
Low Speed:  5.500
Weight      2,200 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 1 cooling fan
1750 RPM
24.86

70 RPM
248 HP
367 HP
1170 RPM
46 RPM
168 HP
300 HP
870 RPM
34.8 RPM
130 HP
275 HP
Notes:
Condition:        New Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

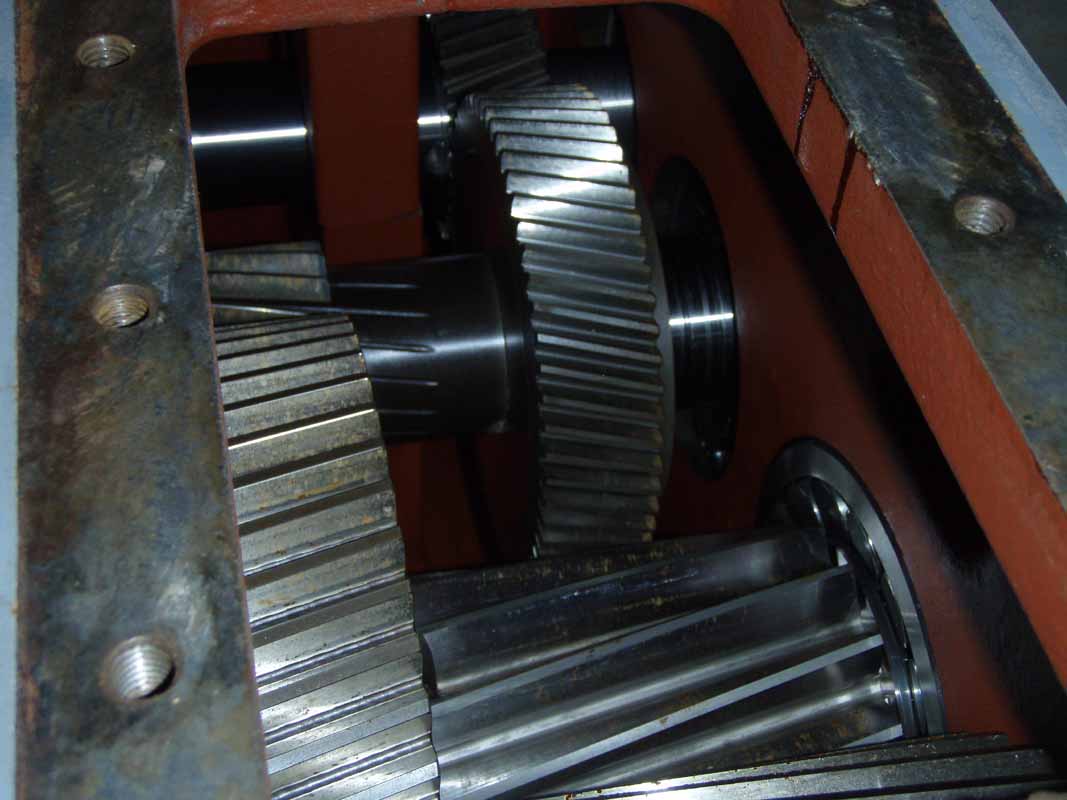

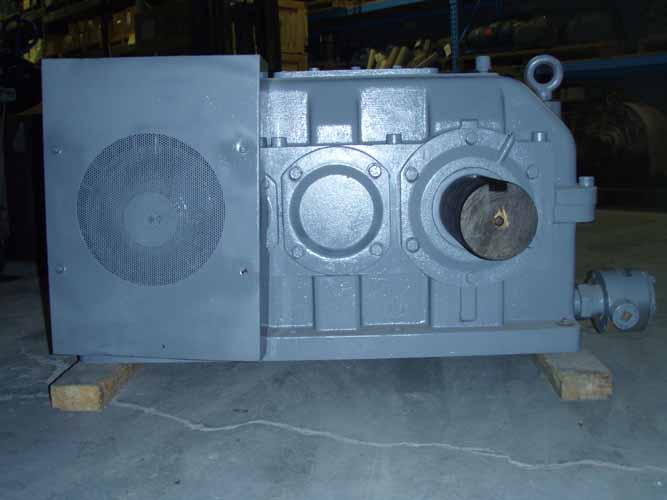

Click on images for larger view.
