N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      001592
Model:      2100Y2-B Ratio:      25.41
MO# or S/N      7-167632-01-02 Alt. S/N
IP Speed      650 RPM HP rating      40 HP Cat. Rating
OP Speed:      25.6 RPM SF / SC      1.5 SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      135,000 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  5.000
Weight      2,100 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25.41

68 RPM
148 HP
1430 RPM
56 RPM
123 HP
1170 RPM
45 RPM
102 HP
870 RPM
34 RPM
78.1 HP
720 RPM
28 RPM
65.7 HP
580 RPM
22 RPM
53.6 HP
Notes:
Condition: USED SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

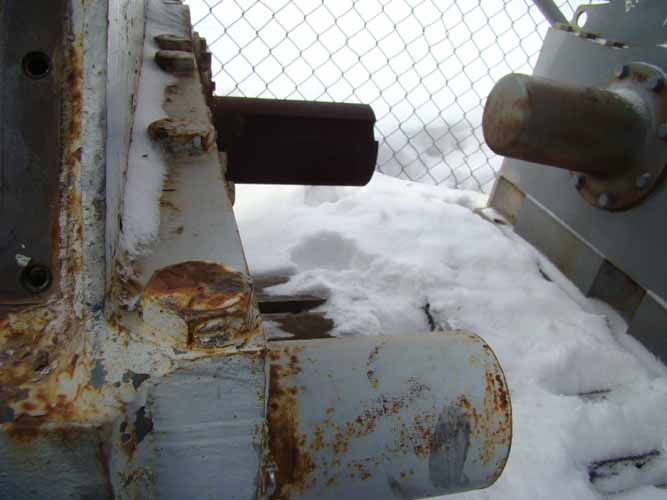

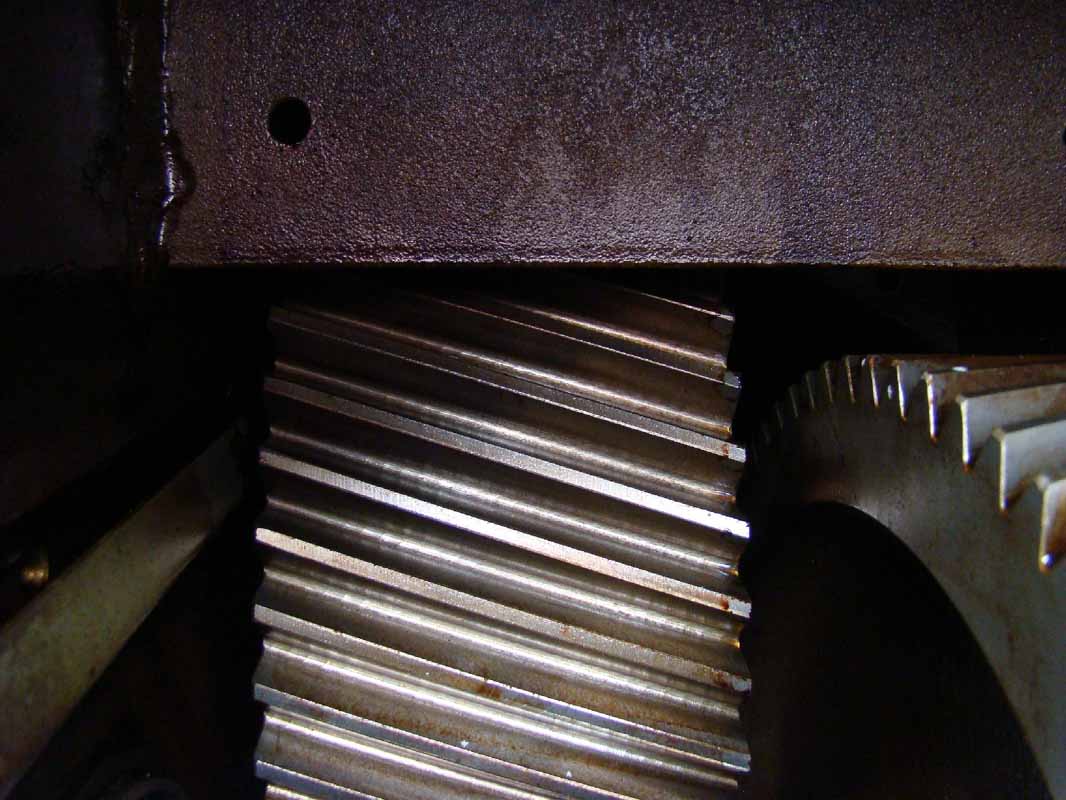

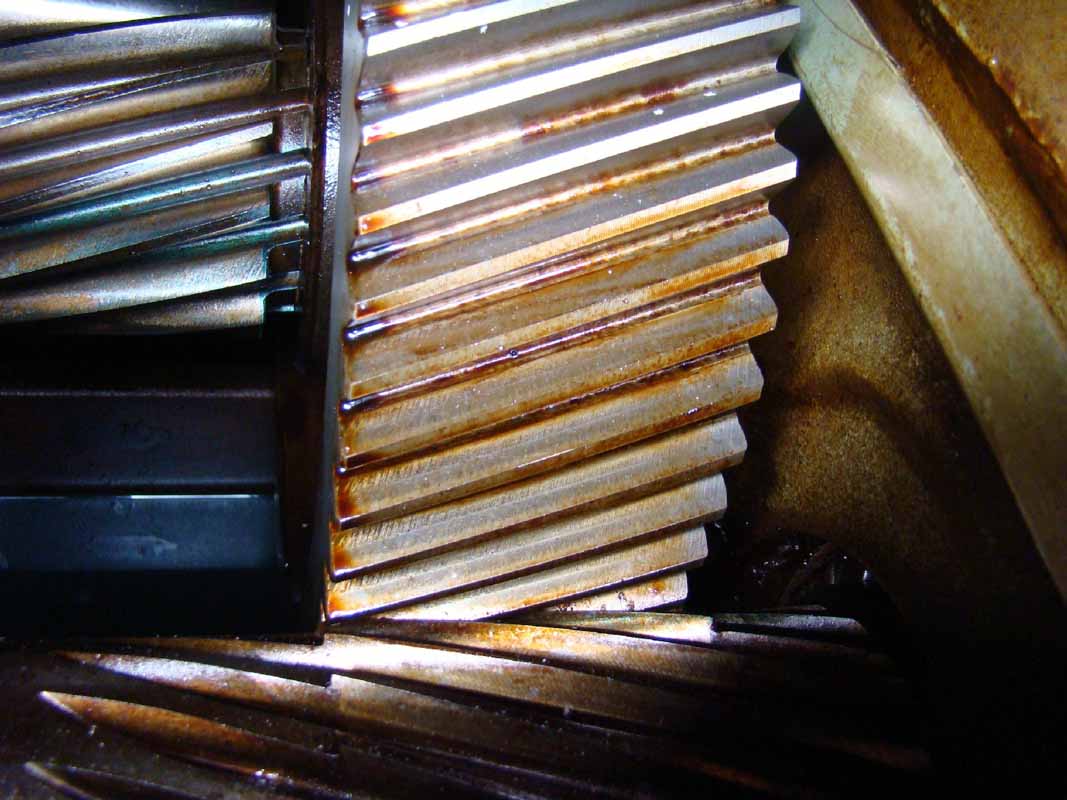

Click on images for larger view.
