- Speed Reducer Data Sheet -

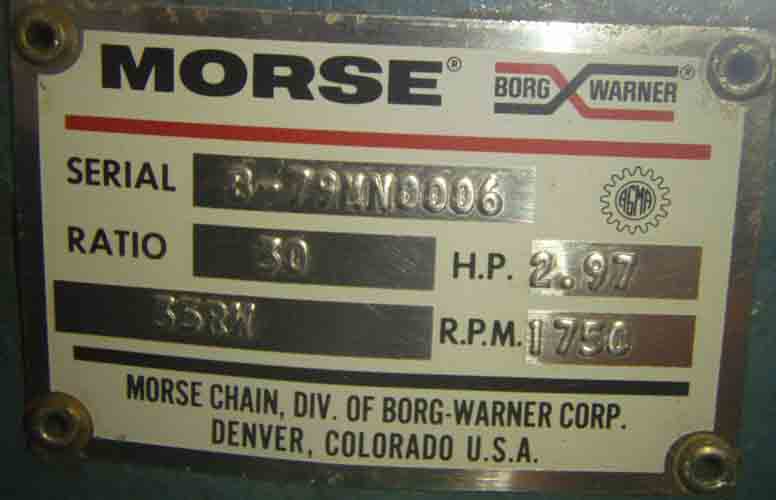

N A M E P L A T E       D A T A
Manufacturer:      MORSE     PowerGear Our ID No.      001627
Model:      35RW Ratio:      30
S/N      8-79MN0006 Center Distance
IP Speed      1750 RPM HP rating      2.97 HP
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      2,680 Lb-Inches Shaft Diameters High Speed:  1.000
Low Speed:  1.625
Weight      90 Lbs Approx. Assembly      LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
30:1

58 RPM
2.97 HP
1170 RPM
38 RPM
2.73 HP
870 RPM
29 RPM
2.39 HP
580 RPM
19 RPM
1.92 HP
Notes:
   NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

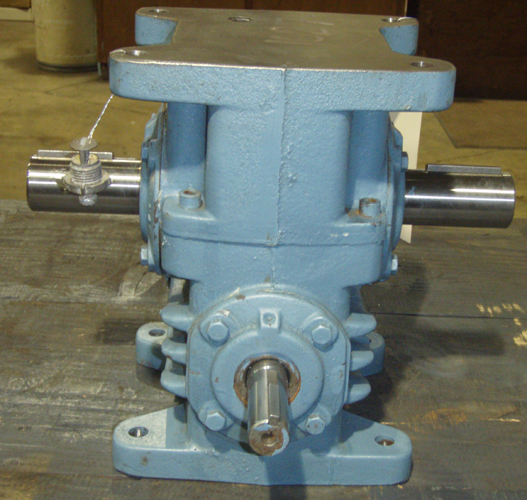

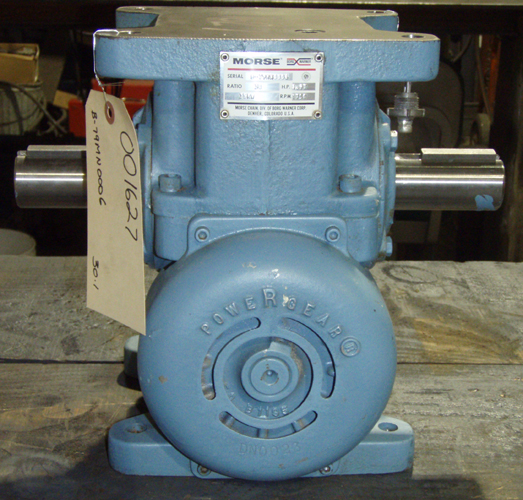

Click on images for larger view.
