Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK     OMNIBOX SERIES Our ID No.       001628
Model No:       262WBWQ1A Ratio:       200 (10 X 20)
S/N       47507830393 Center Distance       P = 1.33 S = 2.62
IP Speed       1750 HP rating       0.51
OP Speed:       8.75 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       2294 Lb-Inches Shaft Diameters High Speed:   0.5
Low Speed:   1.438
Weight       63 Lbs Approx. Assembly       1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
200:1

8.75 RPM
0.51 HP
1170 RPM
5.85 RPM
0.36 HP
870 RPM
4.35 RPM
0.28 HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

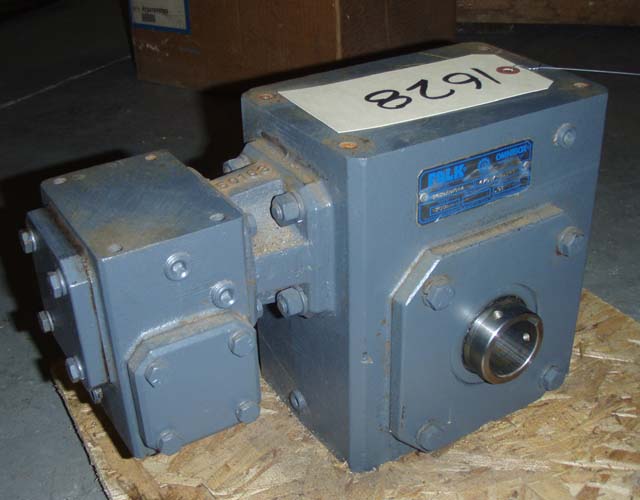

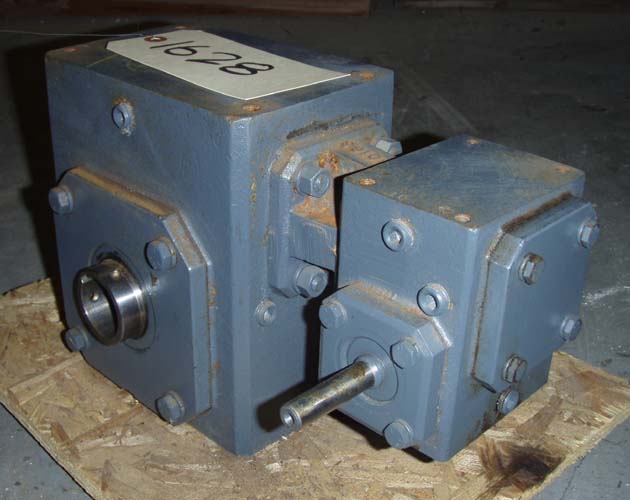

Click on images for larger view.
