Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      001657
Model:      1100FC3A Ratio:      155.6:1
MO# or S/N      92J3688 Alt. S/N
IP Speed      1750 RPM HP rating      20 HP Cat. Rating      24.4 HP
OP Speed:      11 RPM SF / SC      1.4 - SF
Date      6/92 Oil Capacity      21 US Gallons
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      137,000 Lb-Inches Shaft Diameters High Speed:  2.1250
Low Speed:  4.5000
Weight      1500 Lbs Approx. Assembly
Notes:






Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

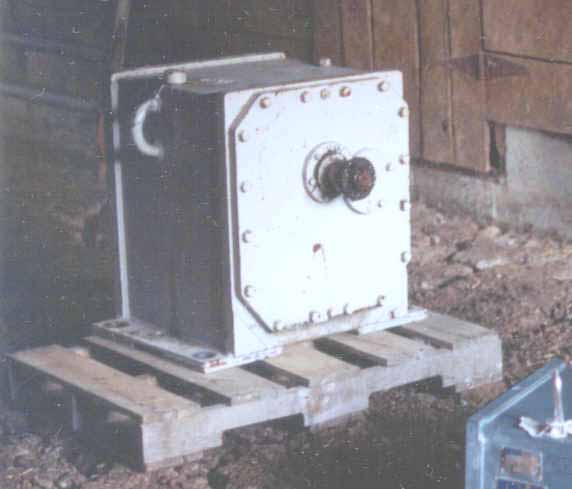

Click on images for larger view.
