- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      001738
Model:      12-1/2 GRA Ratio:      80.467:1
MO# or S/N      5620-7077 Alt. S/N
IP Speed      745 RPM HP rating      90 HP Cat. Rating      135 HP
OP Speed:      9.25 RPM SF / SC      1.50 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      862,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  9.000
Weight      16,000 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
80.467:1

-
-
1430 RPM
-
-
1170 RPM
15 RPM
200 HP
870 RPM
11 RPM
160 HP
720 RPM
9.1 RPM
130 HP
580 RPM
7.5 RPM
106 HP
Notes:
Condition: VERY GOOD
Unit is missing low speed pinion cover


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

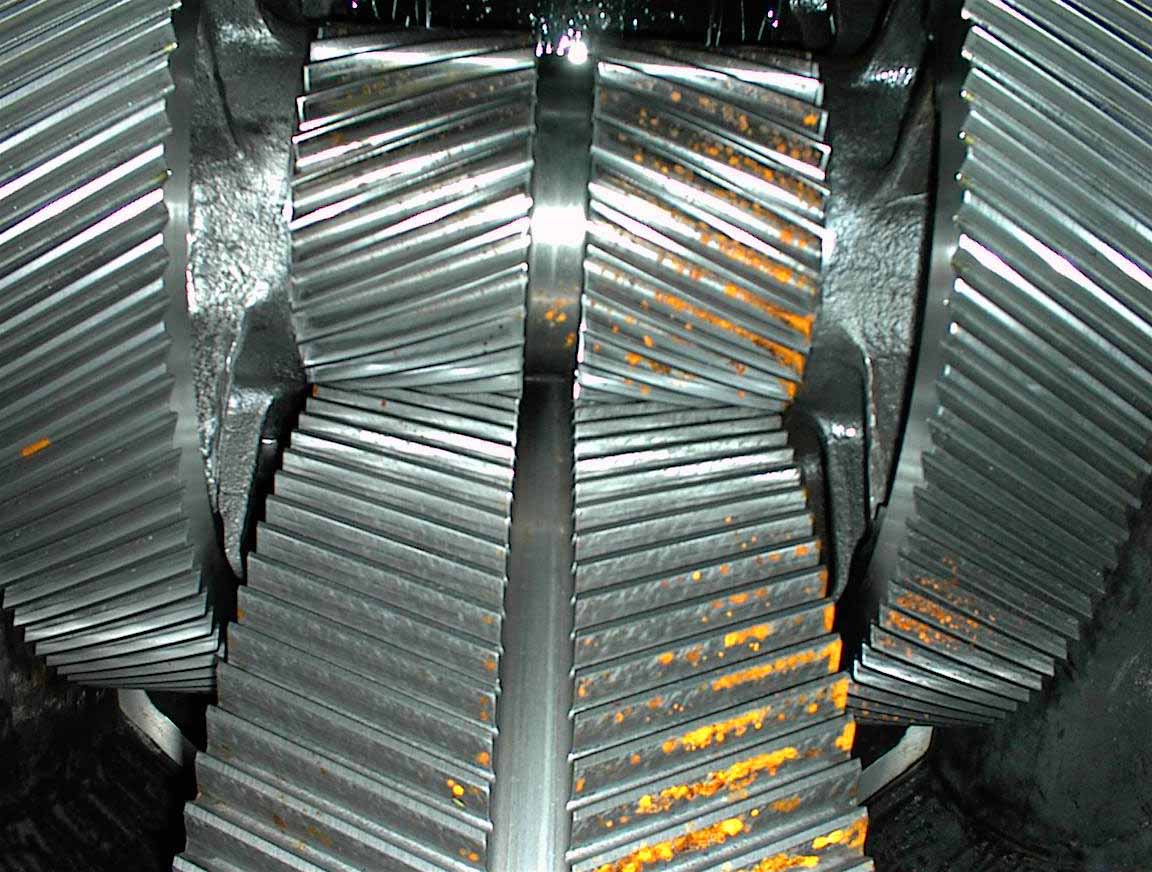

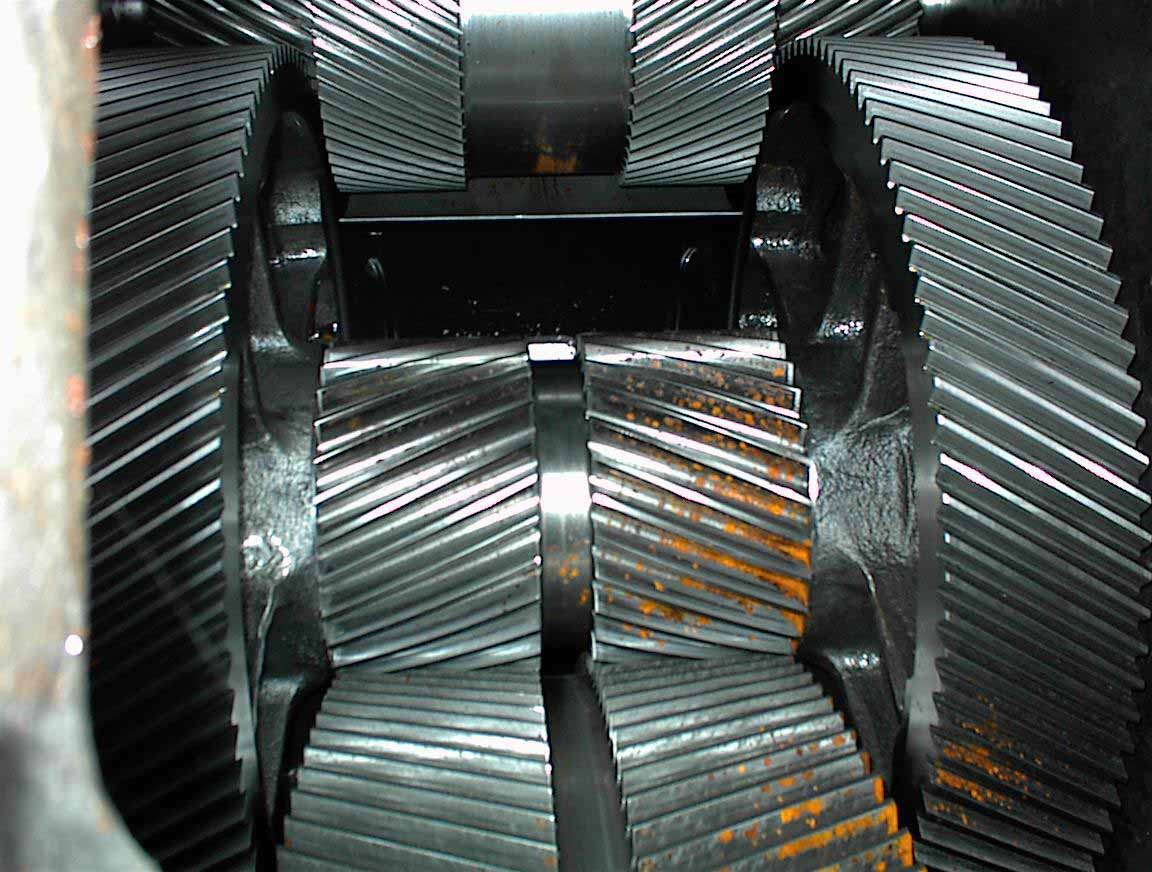

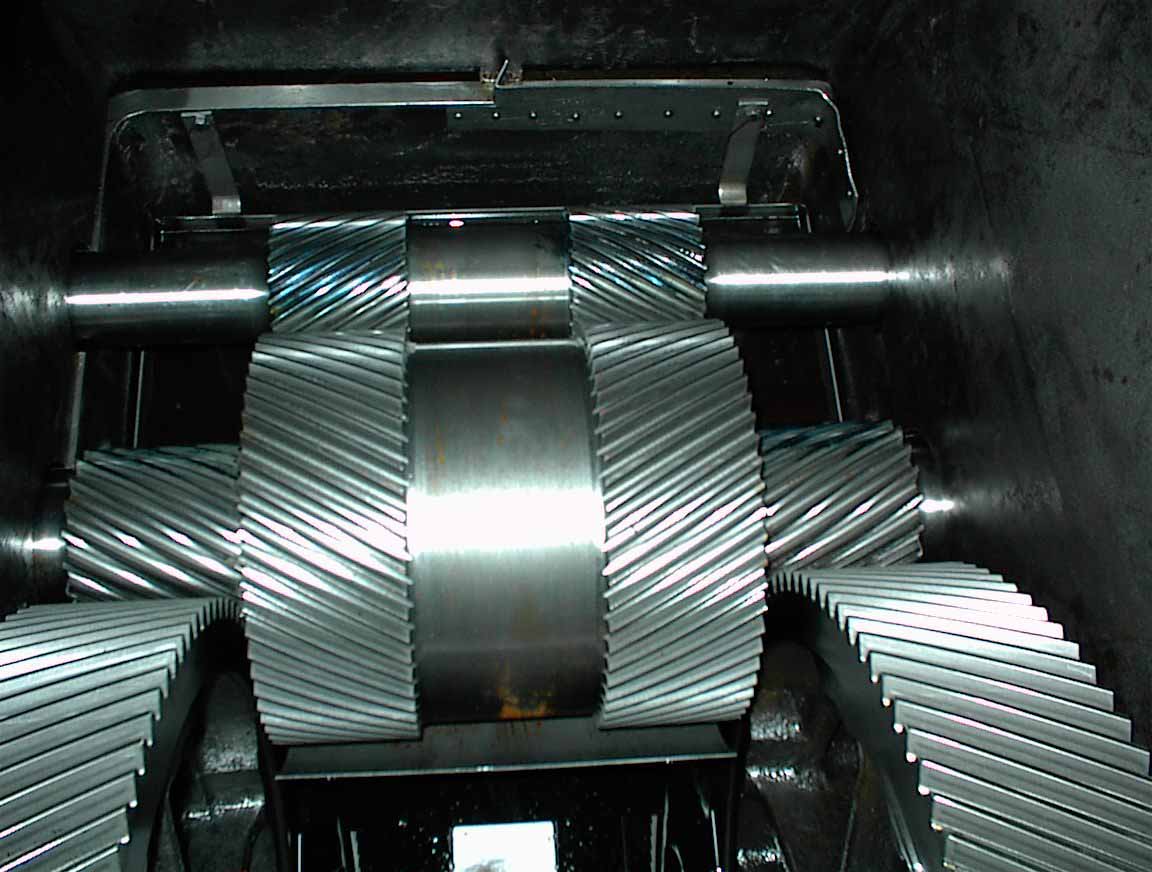

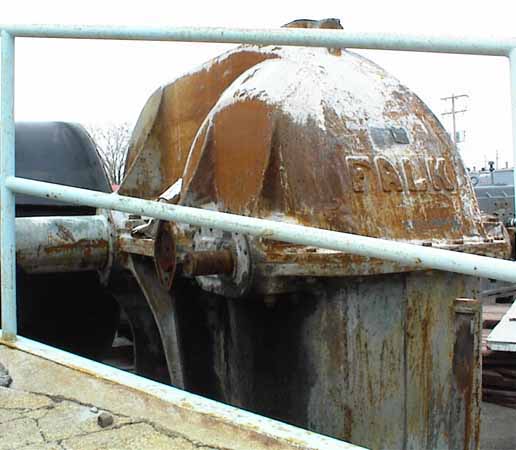

Click on images for larger view.
