Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      002110
Model:      752-1100FZ2A Ratio:      24.79:1
MO# or S/N      8-5M2503-01 Alt. S/N
IP Speed      1750 RPM HP rating      75 HP Cat. Rating
OP Speed:      68 RPM SF / SC      Class II
Date      7-85 Oil Capacity      15.5
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      129,000 Lb-Inches Shaft Diameters High Speed:  2.750
Low Speed:  4.500
Weight      1500 Lbs Approx Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/No Cooling
1750
24.79:1

71
145 HP
116 HP
1430
58
120 HP
118 HP
1170
47
98.7 HP
-
870
35
74.1 HP
-
720
29
61.7 HP
-
580
23
50.0 HP
-
Notes:

Condition: Good Take Out





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

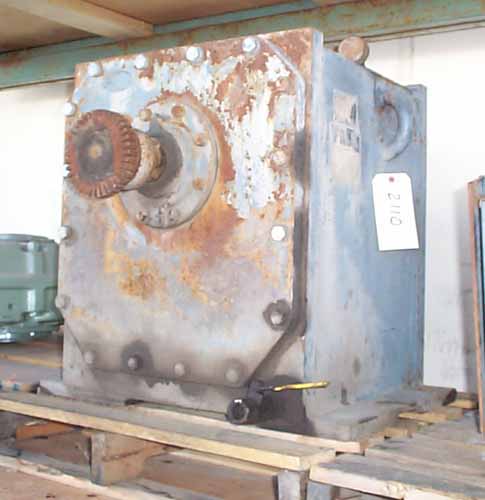

Click on images for larger view.
