Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      002112
Model:      90FZ2A-A Ratio:      30.91:1
MO# or S/N      7-632796-01 Alt. S/N
IP Speed      1750 RPM HP rating      30 HP Cat. Rating
OP Speed:      56 RPM SF / SC      Class II
Date      4/76 Oil Capacity      9
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      47,200 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  4.000
Weight      1,100 Lbs Approx. Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
30.91:1

56 RPM
42.4 HP
1430 RPM
45 RPM
35.1 HP
1170 RPM
37 RPM
29.1 HP
870 RPM
28 RPM
21.9 HP
720 RPM
22 RPM
18.3 HP
580 RPM
18 RPM
15.0 HP
Notes:
Condition: USED SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

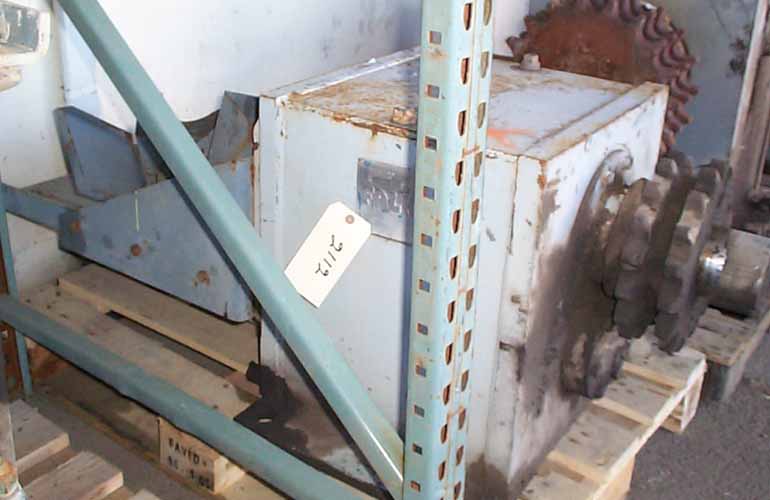

Click on images for larger view.
