Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

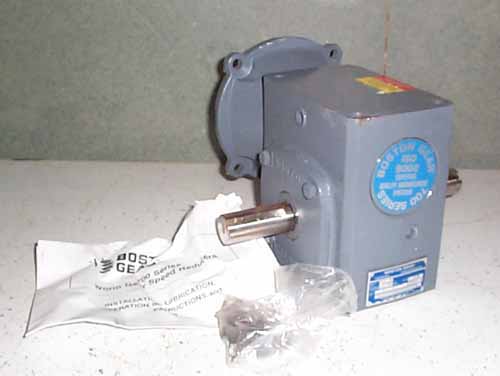

Manufacturer:      Boston Gear Our ID No.      005127
Model:      F721V-30S-B5-H6 Ratio:      30:1
MO# or S/N       Alt. S/N
IP Speed      1750 RPM HP rating       Cat. Rating
OP Speed:       SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating       Shaft Diameters High Speed:  56 C
Low Speed:  1.000
Weight      25 Lbs Approx. Assembly      Double Output Projection
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
30:1

 58.3
 .81 HP
1170
 39
 .62 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
