Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Dodge Tigear Our ID No.      005130
Model:      Q-133-B-005-M-056-K1 Ratio:      5:1
MO# or S/N      MR96100 D FA Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      167 Lb-Inches Shaft Diameters High Speed:  56C, Hollow
Low Speed:  .625, Solid
Weight       Assembly      Right Angle Worm, 56C Hollow, .625 Solid
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
5:1

350
1.08 HP
1170
230
.80 HP
Notes:

Condition: New Surplus





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

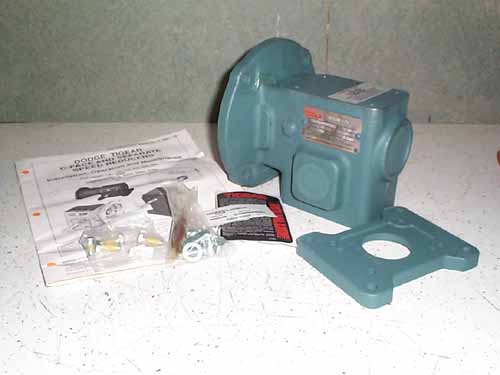

Click on images for larger view.
