Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Morse Our ID No.      005214
Model:      175-Q-56-LR-60 Ratio:      60:1
MO# or S/N      XD1120 E12N Alt. S/N
IP Speed      1750 RPM HP rating      .30 HP Cat. Rating
OP Speed:      29.1 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      426 Lb-Inches Shaft Diameters High Speed:  56C, Hollow
Low Speed:  .875, Solid
Weight      20.0 Lbs Approx. Assembly      Right Angle Worm, 56C Hollow, .875 Double Solid
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
60:1

29.1
.30
1170
19.3
.24
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

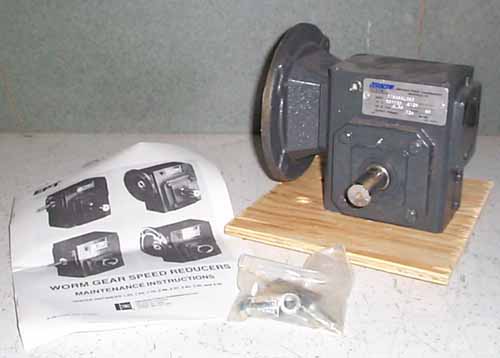

Click on images for larger view.
