Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

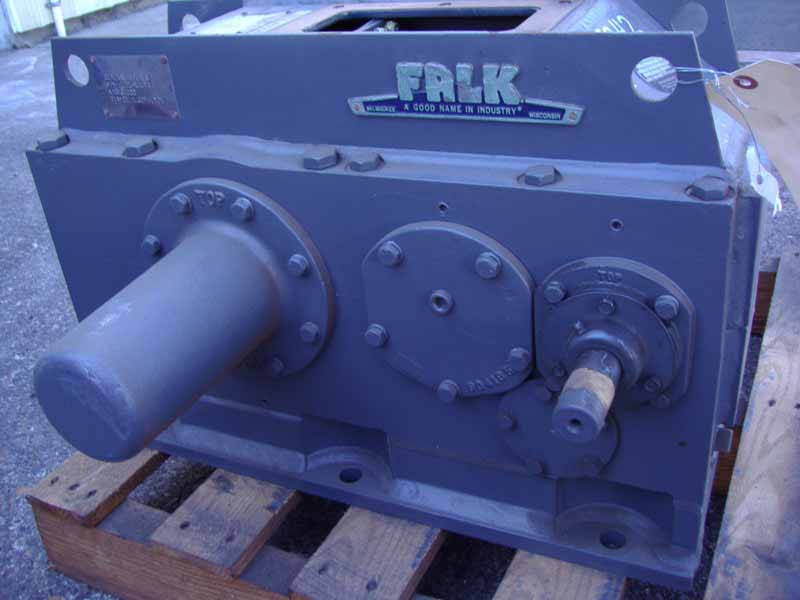

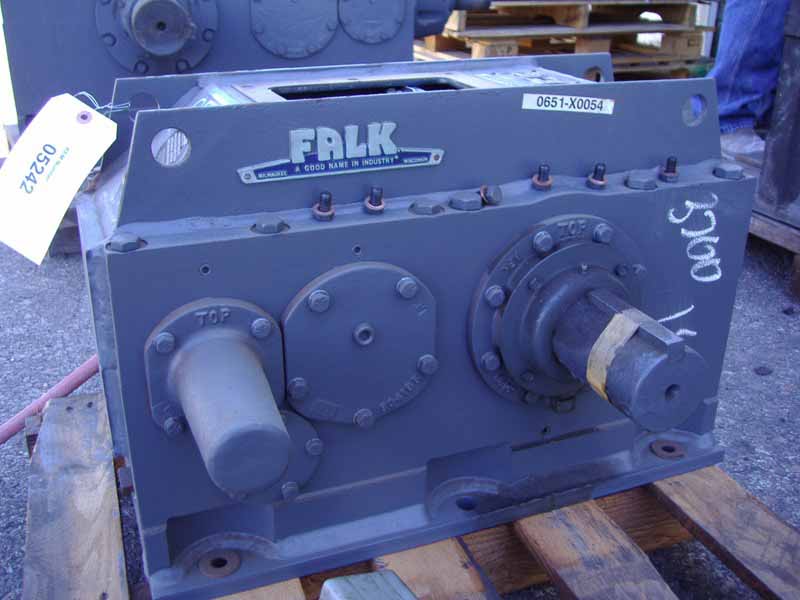

Manufacturer:      Falk Our ID No.      005242
Model:      2050Y3-LD Ratio:      153.5:1
MO# or S/N      9-066312 Alt. S/N
IP Speed      1750 RPM HP rating      6.02 HP Cat. Rating
OP Speed:      11.4 RPM SF / SC      1 - SF
Date      6/90 Oil Capacity      2.8
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      33,300 Lb-Inches Shaft Diameters High Speed:  1.125
Low Speed:  2.750
Weight      500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
153.5:1

11
6.02 HP
1430
9
4.95 HP
1170
7.5
4.08 HP
870
5.5
3.06 HP
720
4.5
2.54 HP
580
3.8
2.06 HP
Notes:

Condition: NEW SURPLUS
