Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005284
Model:      385AB2-A Ratio:      4.85:1
MO# or S/N      8-898755 Alt. S/N
IP Speed      1170 RPM HP rating       Cat. Rating
OP Speed:      241 RPM SF / SC
Date       Oil Capacity      7
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      110,000 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  4.500
Weight      1650 Lbs Approx. Assembly      Assembly #54, Right Angle
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/Cooling Tubes
1750
4.85:1

350
632 HP
470 HP
1430
280
532 HP
444 HP
1170
230
445 HP
416 HP
870
175
339 HP
Thermal exceeds Mechanical
720
140
284 HP
Thermal exceeds Mechanical
580
115
284 HP
Thermal exceeds Mechanical
Notes:

Condition: NEW SURPLUS

     -Unit has cooling tube





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff

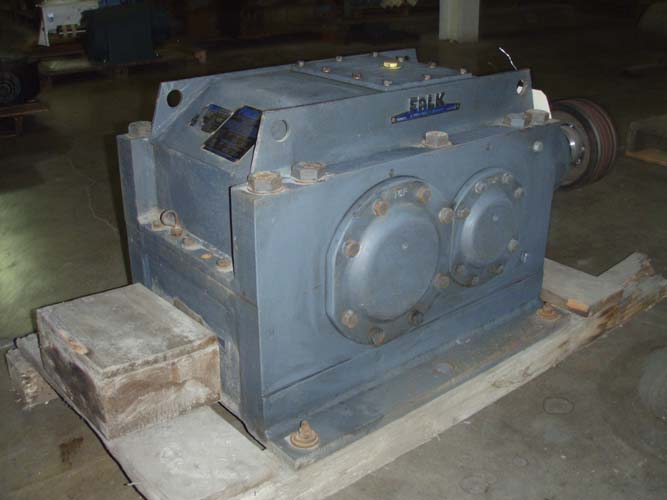

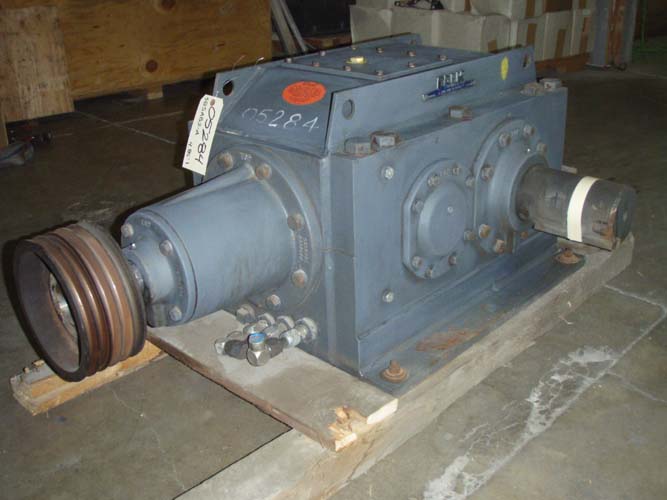

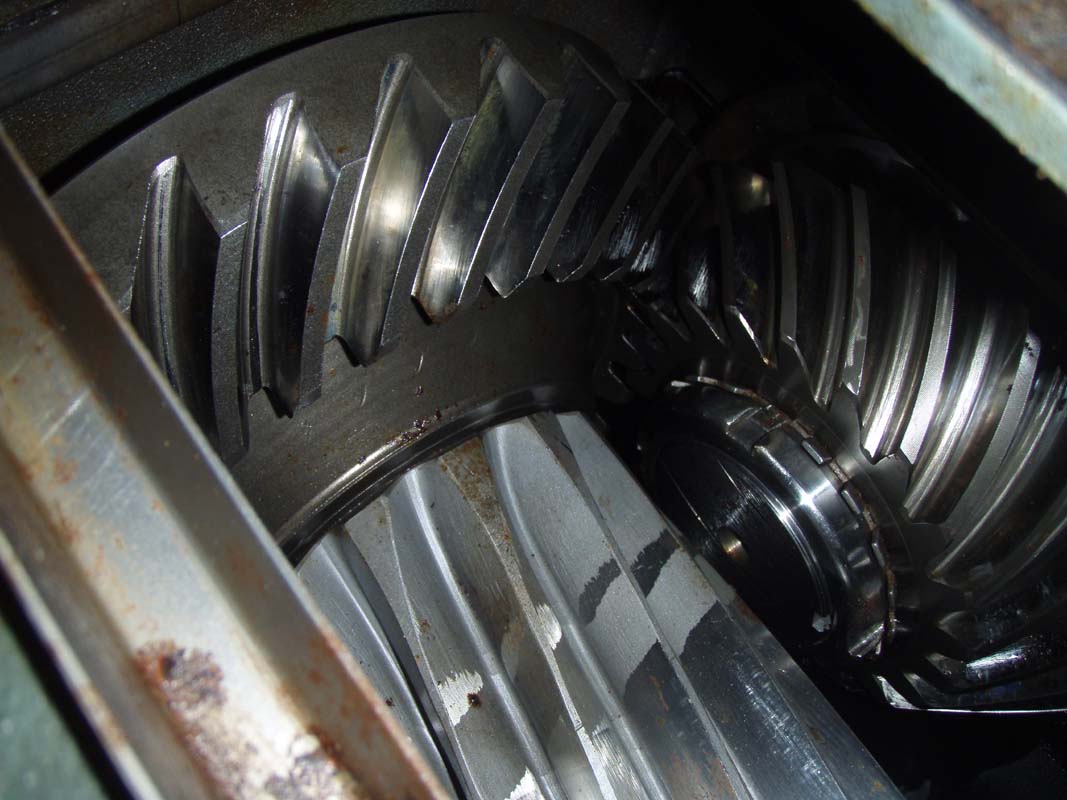

Click on images for larger view.
