Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

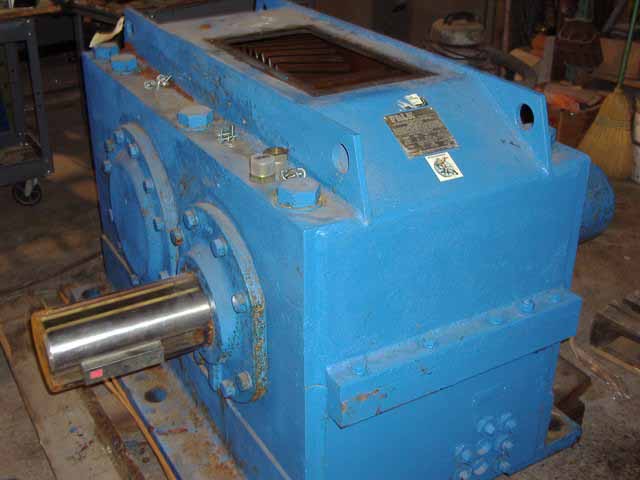

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005286
Model:      485A1-AS Ratio:      4.200:1
MO# or S/N      8-966319 Alt. S/N
IP Speed      1170 RPM HP rating      1500 HP Cat. Rating
OP Speed:      278.6 RPM SF / SC      2.55 - SF
Date      11/89 Oil Capacity      32 US GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      785,000 Lb-Inches Shaft Diameters High Speed:  6.000
Low Speed:  8.500
Weight      7,000 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
4.200:1

420 RPM
5189 HP
1430 RPM
350 RPM
4505 HP
1170 RPM
280 RPM
3835 HP
870 RPM
210 RPM
2852 HP
720 RPM
175 RPM
2394 HP
580 RPM
140 RPM
1964 HP
Notes:
Condition: Rebuilt
Assembly # 18, can be changed to # 19 if required by application.

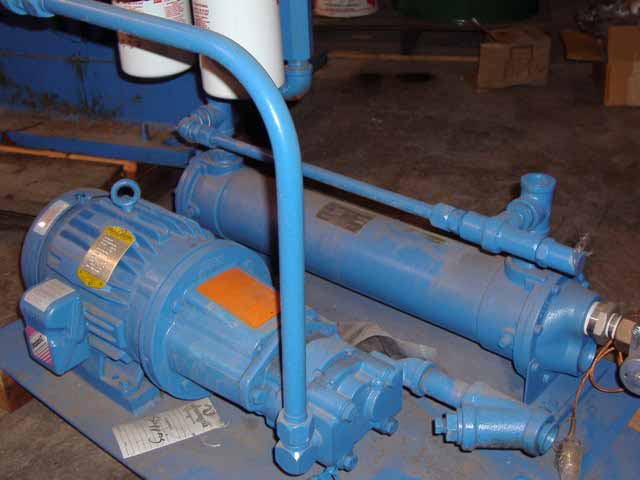

Unit is furnished with a wall mounted pump and cooler system.

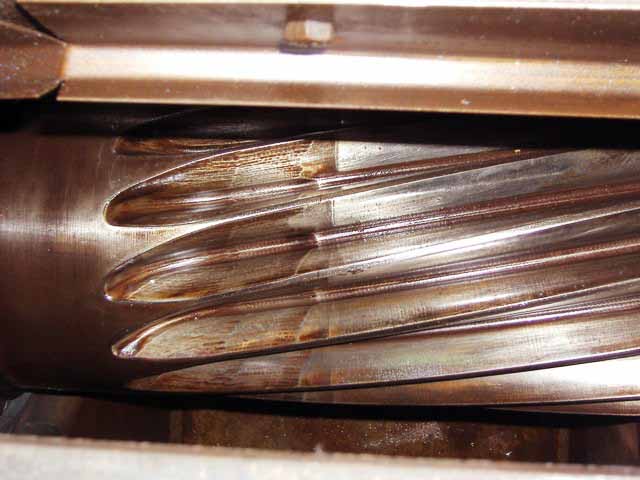

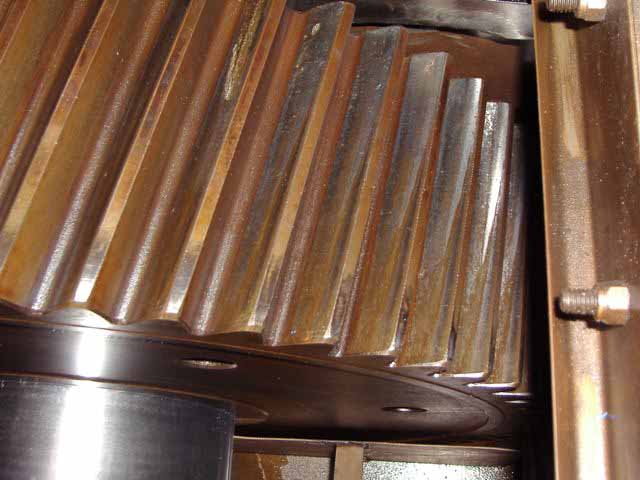

Unit is used with wear on gears, it appears to have been rebuilt
