- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

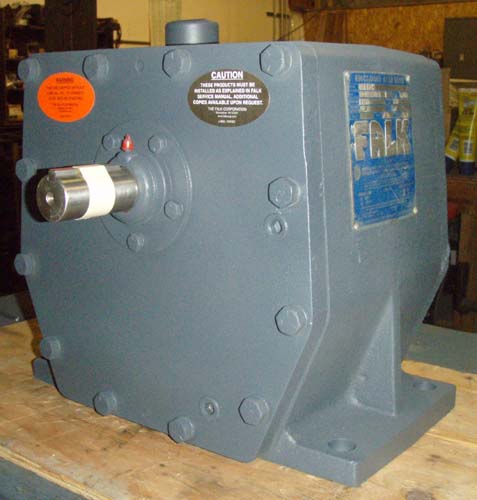

Manufacturer:      FALK Our ID No.      005311
Model:      40FC2M (1040FC2A) Ratio:      5.006:1
MO# or S/N      8-033307 Alt. S/N
IP Speed      1750 RPM HP rating      24.8 HP Cat. Rating
OP Speed:      350 RPM SF / SC      1.0 - SF
Date      6/80 Oil Capacity      2.2
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      5,510 Lb-Inches Shaft Diameters High Speed:  1.3750
Low Speed:  2.0000
Weight      220 Lbs Approx. Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
5.006:1

350
30.6 HP
1430
280
26.3 HP
1170
230
22.6 HP
870
175
18.0 HP
720
140
15.1 HP
580
115
12.3 HP
Notes:

Condition: NEW SURPLUS
