Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK     OMNIBOX SERIES Our ID No.      005317
Model No:      425WOCQM1A-10-140TC Ratio:      10
S/N      4710752 0290 Center Distance      4.25
IP Speed      1750 HP rating      13.07
OP Speed:      1750 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       2,698 Lb-Inches Shaft Diameters High Speed:  140TC 0.875 hollow
Low Speed:  2.1875 Hollow
Weight      156 Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
10:1

175 RPM
13.07 HP
1170 RPM
RPM
HP
870 RPM
RPM
HP
Notes:
   Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

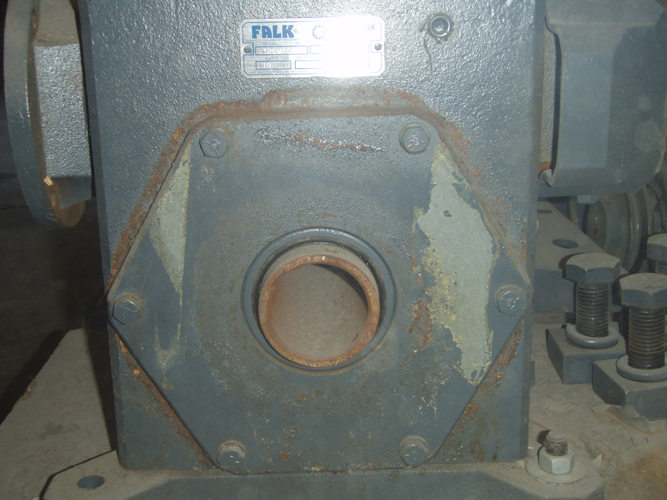

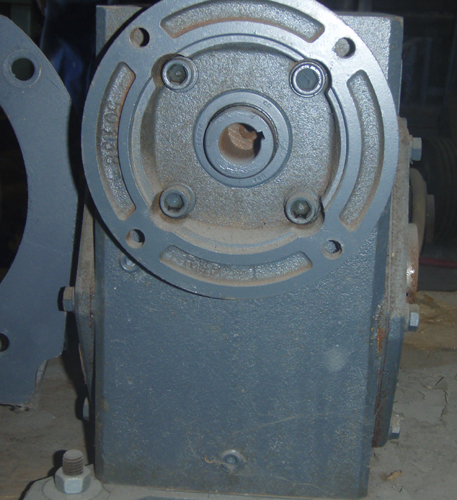

Click on images for larger view.
