- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005326
Model:      2050Y2-S Ratio:      11.47:1
MO# or S/N      6-865308-01 Alt. S/N      96068871
IP Speed      1430 RPM HP rating      18 HP Cat. Rating
OP Speed:      124.6 RPM SF / SC      2.56 - SF
Date       Oil Capacity      3.25
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      22,900 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  2.750
Weight      500 Lbs Approx. Assembly      Assembly #19, Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
11.47:1

155
55.2 HP
1430
125
46.2 HP
1170
100
38.5 HP
870
77
29.4 HP
720
62
24.7 HP
580
50
20.3 HP
Notes:

Condition: Unit is Rebuilt
Unit has long low speed shaft




Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff

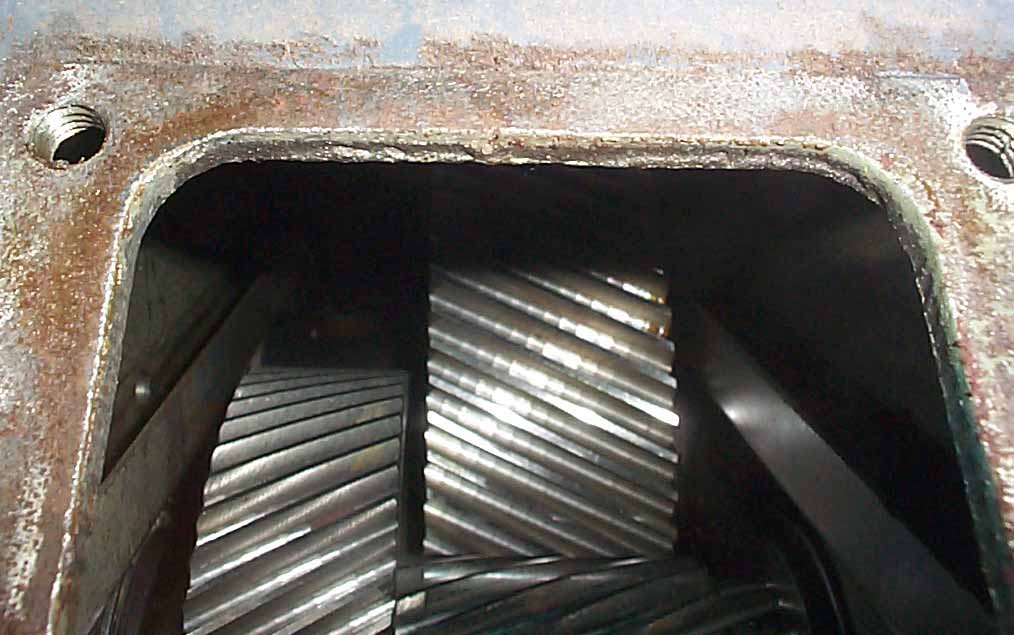

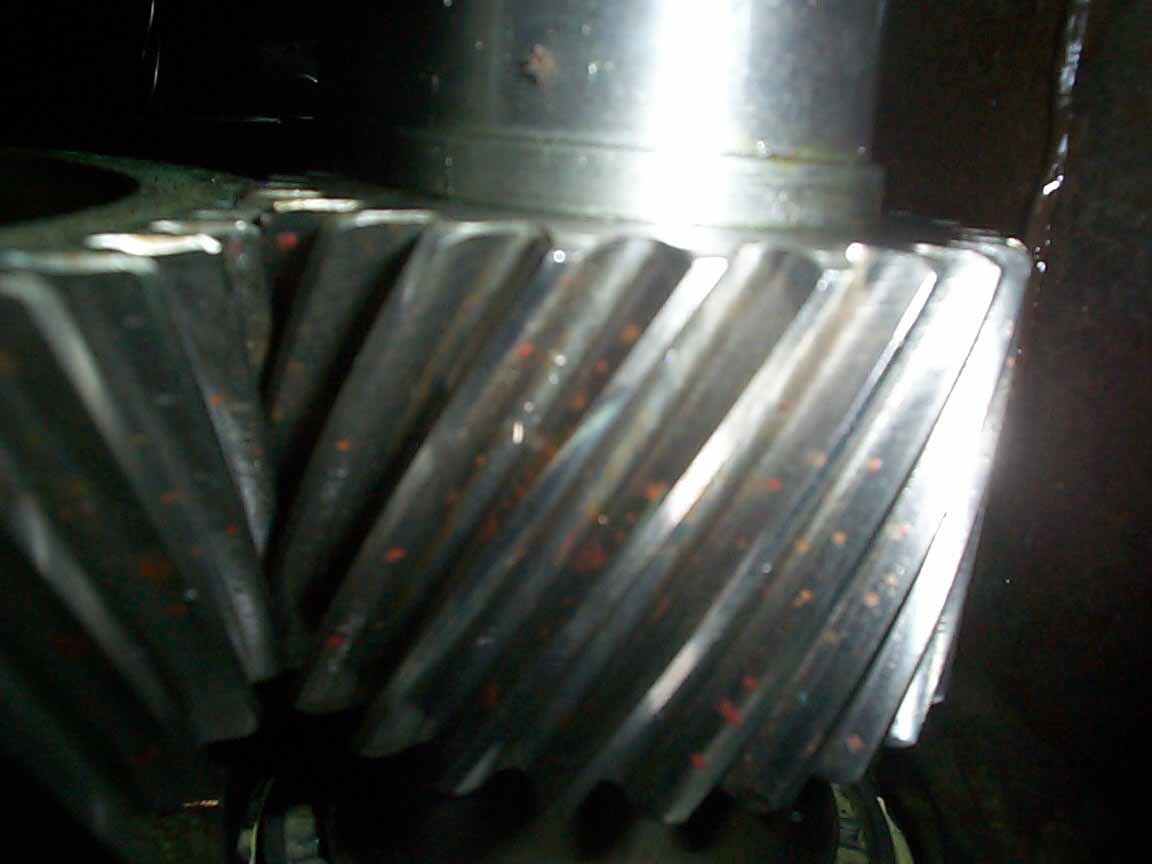

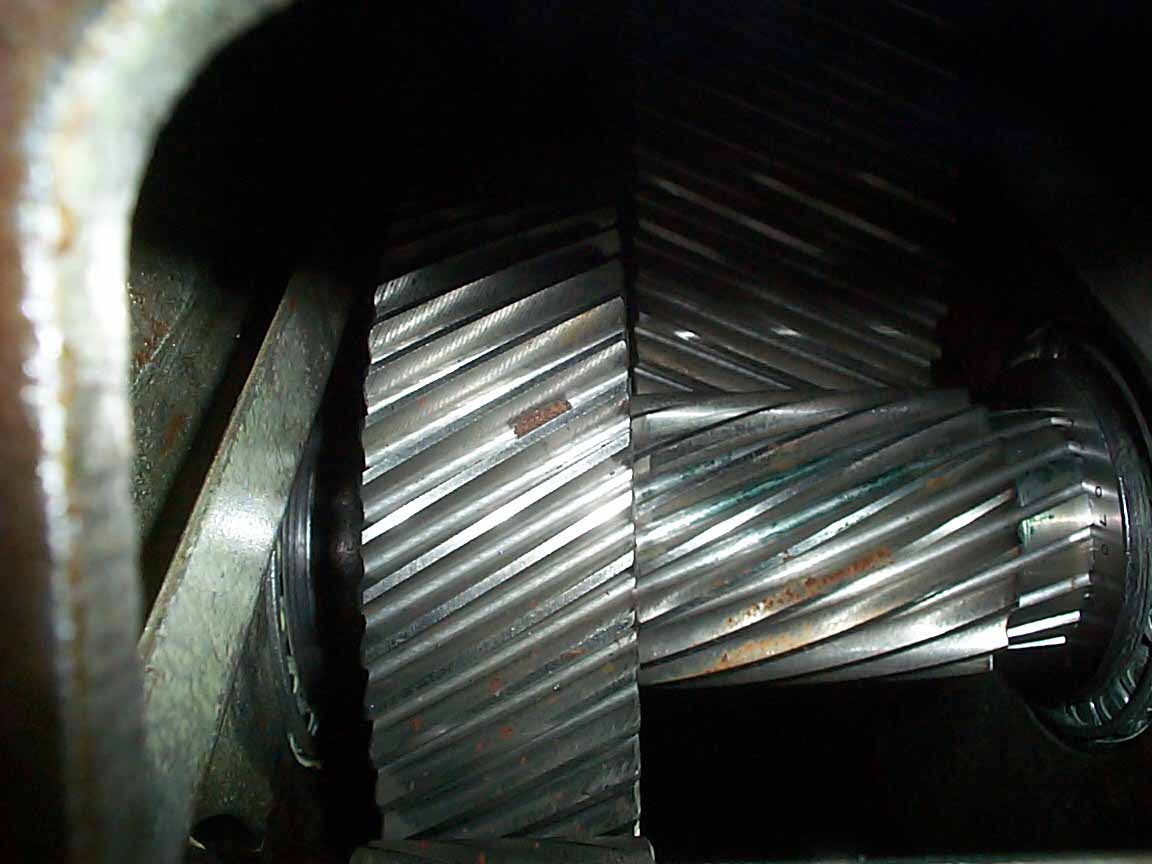

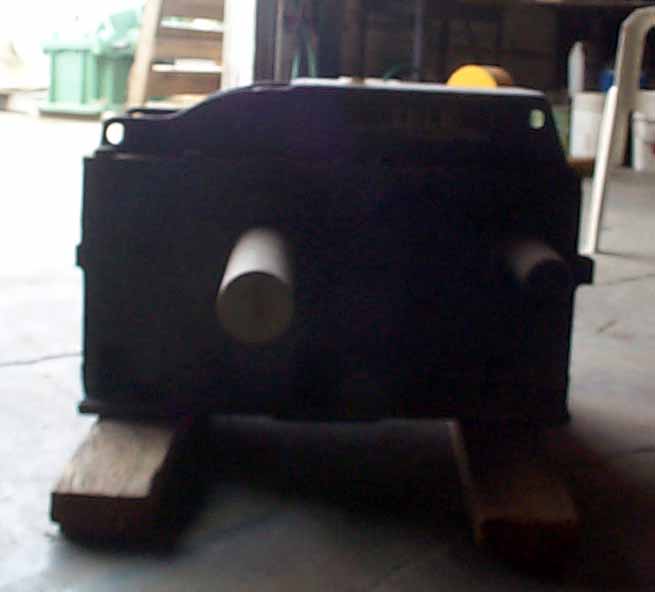

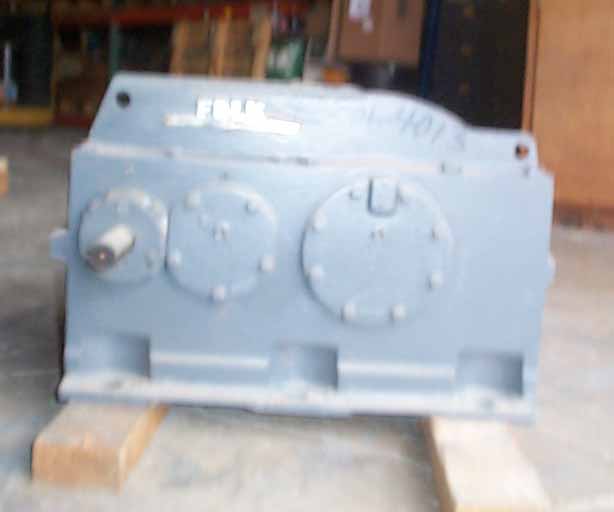

Click on images for larger view.
