Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005335
Model:      152-4EBZ3A-16B Ratio:      13.92:1
MO# or S/N      8-0M1785-01 Alt. S/N
IP Speed      1750 RPM HP rating      15 HP Cat. Rating
OP Speed:      125 RPM SF / SC      Class II
Date      5/80 Oil Capacity      5
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      13,000 Lb-inches Shaft Diameters High Speed:  1.375
Low Speed:  2.500
Weight      550 Lbs Approx Assembly      Right Angle
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
13.92:1

125
26.0 HP
1430
100
22.0 HP
1170
84
18.3 HP
870
62
13.9 HP
720
50
11.5 HP
580
42
-
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff

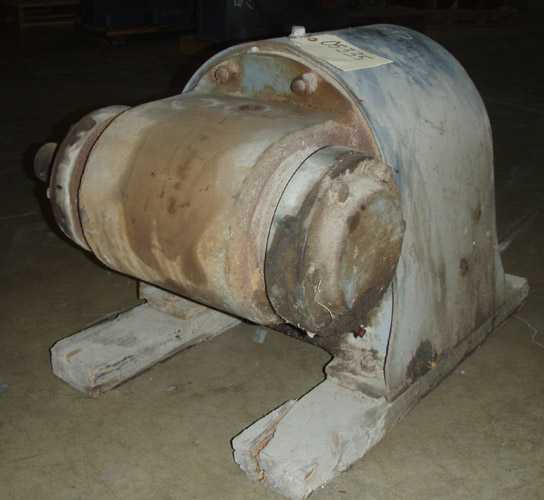

Click on images for larger view.
