Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005427
Model:      262W0M1A40-140 Ratio:      40:1
MO# or S/N      47016370398 Alt. S/N
IP Speed      1750 RPM HP rating      1.35 HP Cat. Rating
OP Speed:      44 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      1461 Lb-Inches Shaft Diameters High Speed:  140TC, Hollow
Low Speed:  1.125, Solid
Weight      70 Lbs Approx. Assembly      Right Angle Worm, 140TC Hollow, 1.125 Solid
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
40:1

44
1.35 HP
1170
29
1.11 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

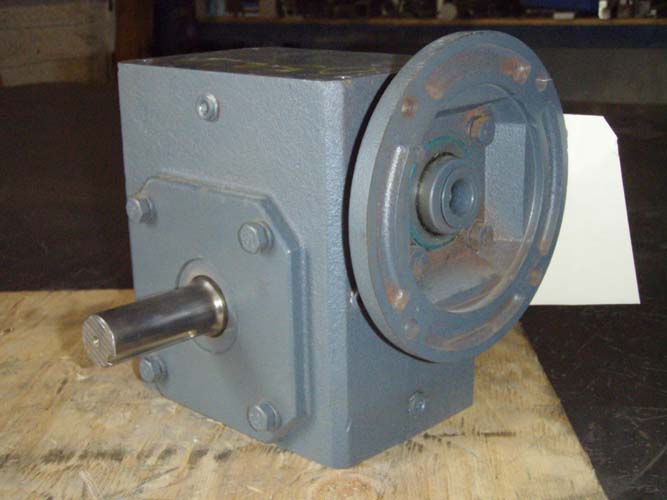

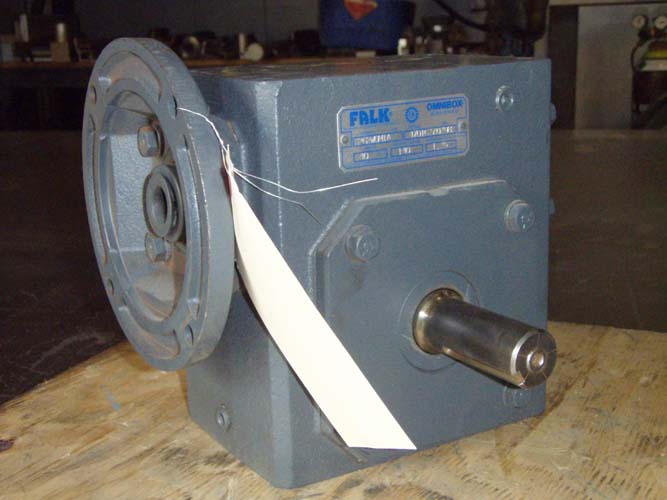

Click on images for larger view.
